Using ICE to invert weightmap values


Here’s a more general ICE tree for inverting weightmaps: it handles weightmaps that are not in the 0-1 value.

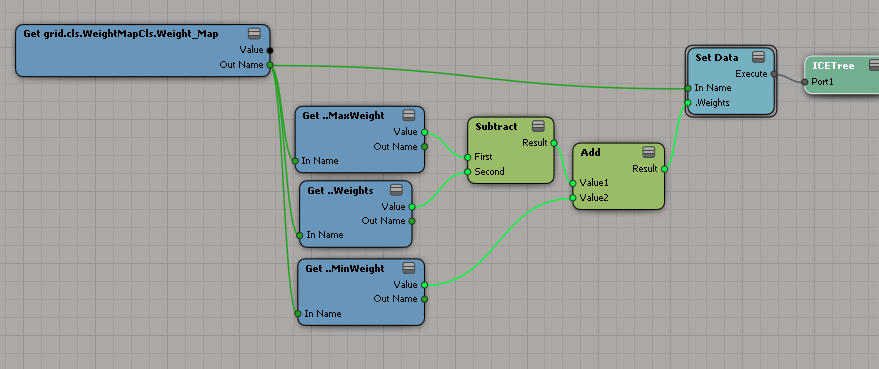

When I first worked it out in my head I saw it like this:

But that’s just the same as using a Rescale:

Here’s a weightmap before and after being inverted by the above. In this example, the weightmap has a value range of -1 to 3.

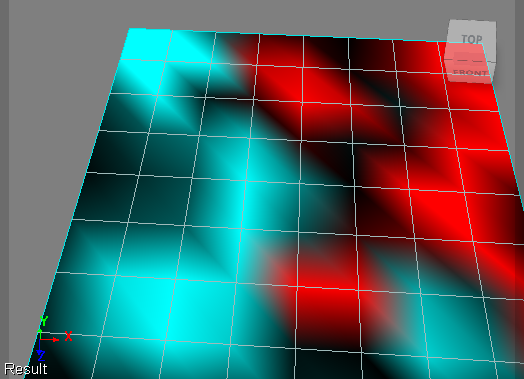

Before:

After (inverted):

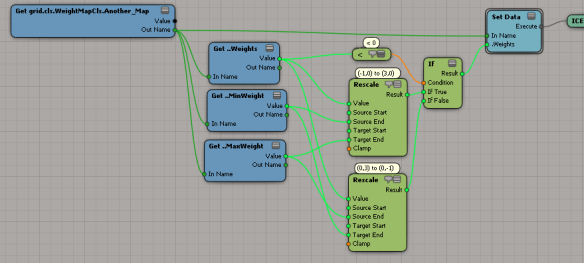

Looking at those, maybe I should do something like this:

Which gives this inverted weightmap:

2 thoughts on “Using ICE to invert weightmap values

    • See my Saturday post for a intro video on this subject.
      In brief, using Out Name to In Name connections allow to take a scene refererence like this:

      cone.polymsh.cls.WeightMapCls.Weight_Map

      and separate it into pieces:

      cone
      .polymsh.cls.WeightMapCls
      .Weight_Map

      The Out Name to In Name connection combines the pieces of the scene reference
