Converting EMDL files

Recently a few customers have asked Autodesk support about converting their Softimage EMDL files, and whether they could somehow get Softimage licenses to do it. (One Autodesk person even asked me whether I know anyone who could answer Softimage questions! 😉

You actually don’t need a license, because you can do it with xsibatch. Just add the -processing flag to do it without using a license.

xsibatch.exe -processing -script "S:\solidangle\softimage\convert_emdl.pys" -main "main"

Here’s an example script that loads a model and exports it to Alembic:

def main():
Application.ImportModel("S:\Program Files\Autodesk\Softimage 2015 SP2\Data\XSI_SAMPLES\Models\Jaiqua.emdl", "", "", "", "", "", "")

path = "S:\Projects\softimage\support\Models\{0}.abc".format( Application.Selection(0).Name )

model = "B:{0}".format( Application.Selection(0).Name )

Application.AbcExport( path, 1,2, model, False, "Ogawa", "Color, Scale, Size, PointVelocity, Orientation, AngularVelocity, Shape, StrandPosition, StrandVelocity, StrandDeform, StrandOrientation, StrandUpVector, StrandColor, StrandSize, ColorAlongStrands", "Materials, MaterialID, PointUserMotions", "")

PS Here’s the Softimage SDK help

[Scripting] Opening a page in a web browser

Here’s a couple of ways to open a URL in a web browser from inside Softimage. Unfortunately, these worked on Windows only. On Linux, the JScript can’t create that ActiveX object, and the Python didn’t do anything.


// Open a web page in the default browser
var objShell = new ActiveXObject("shell.application");
objShell.ShellExecute("", "", "", "open", 1);


import webbrowser '' )

How to check if an object exists with no error handling

Yes, this old chestnut…I thought I had posted this ages ago, but I don’t see in the archives, so:

If you want to check if an object exists, and you don’t want to deal with any error handling, then do it this way:

from sipyutils import disp		# win32com.client.Dispatch

def objExists( name ):
    c = disp( "XSI.Collection" )
    c.Items = name
    return not( c.Count == 0 )

print 'Object does exist' if objExists( "XSI_Man.geom" ) else 'Does not exist'

Getting the plugin path

You can use the OriginPath property to get the location of a plugin, but OriginPath is available in the scope of a plugin callback only.

__sifile__ and __sipath__, however, can be used in the global scope.

import win32com.client
from win32com.client import constants

import sipyutils

Application.LogMessage( "Global: __sipath__=%s" % __sipath__ )
Application.LogMessage( "Global: __sifile__=%s" % __sifile__ )

null = None
false = 0
true = 1

def XSILoadPlugin( in_reg ):
	in_reg.Author = "SOLIDANGLE"
	in_reg.Name = "TestPlugin"
	in_reg.Major = 1
	in_reg.Minor = 0

	#Register plugin items

	Application.LogMessage( "XSILoadPlugin: __sipath__=%s" % __sipath__ )
	Application.LogMessage( "XSILoadPlugin: __sifile__=%s" % __sifile__ )
	Application.LogMessage( "XSILoadPlugin: in_reg.OriginPath=%s" % in_reg.OriginPath )

	return true

The above will output something like the following:

# INFO : Global: __sipath__=C:\Users\SOLIDANGLE\Autodesk\Softimage_2015\Application\Plugins
# INFO : Global: __sifile__=C:\Users\SOLIDANGLE\Autodesk\Softimage_2015\Application\Plugins\
# INFO : XSILoadPlugin: __sipath__=C:\Users\SOLIDANGLE\Autodesk\Softimage_2015\Application\Plugins
# INFO : XSILoadPlugin: __sifile__=C:\Users\SOLIDANGLE\Autodesk\Softimage_2015\Application\Plugins\
# INFO : XSILoadPlugin: in_reg.OriginPath=C:\Users\SOLIDANGLE\Autodesk\Softimage_2015\Application\Plugins\

Getting all shaders under a light

Given something like this:

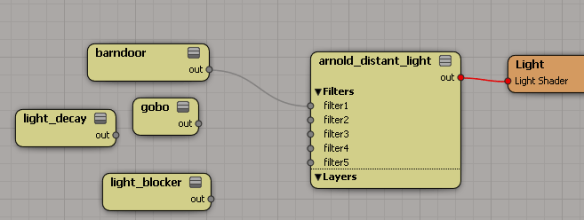

light_disconnected shaders
Here’s how you get all shaders under a light, even the disconnected ones:

from sipyutils import si		# win32com.client.Dispatch('XSI.Application')
from sipyutils import log		# LogMessage
from sipyutils import C			# win32com.client.constants
from sipyutils import disp		# win32com.client.Dispatch

si = si()

def dispFix( badDispatch ):
    import win32com.client.dynamic
    # Re-Wraps a bad dispatch into a working one:
    return win32com.client.dynamic.Dispatch(badDispatch)

oLight = si.Selection(0)

#import win32com.client
oDisconnected = disp( "XSI.Collection" )

if oLight.IsClassOf( C.siLightID ):
	for oShader in oLight.GetAllShaders():
		oOut = dispFix( oShader.Parameters( "out" ) )
		if oOut.Targets.Count == 0:
			oDisconnected.Add( oShader )
log( oDisconnected.GetAsText() )

Hat tip: Matt Lind, who provided the GetAllShaders answer to the question “how to get all shaders in a light, even the disconnected ones”

Getting the selected FxTree nodes

You can use the undocumented selectednodes attribute, which was added in Softimage 2014.

views = Application.Desktop.ActiveLayout.Views
v = views.Find("Fx Tree") or views.Find("View Manager").Views.Find("Fx Tree")
if v:
    print v.GetAttributeValue("selectednodes")  # None

The FxTree view also has a targetcontent attribute, which is documented.

* hat tips to csaez (code) and luceric (attribute)

Adding ReferenceWidgets to PPGs?

It used to be possible to add a ReferenceWidget by calling oLayout.AddItem( “Param”, “ref”, “ReferenceWidget” ) in your DefineLayout. But that was four or five years ago, and it no longer works.

def MyProperty3333_DefineLayout( in_ctxt ):
	oLayout = in_ctxt.Source

	# Test some other control types
	oLayout.AddItem( "Param", "txt", "Texture Space" )
	oLayout.AddItem( "Param", "scnref", "SceneReferenceWidget" )

	# Doesn't work
	oLayout.AddItem( "Param", "ref", "ReferenceWidget" )

	# Doesn't work
	oPPGItem = oLayout.AddItem( "Param", "", "dscontrol" ) ;
	oPPGItem.SetAttribute( "UIType", "ReferenceWidget" );

For reference 😉 this is a ReferenceWidget:

And this is how a ReferenceWidget is added in SPDL:

	Parameter "inst_source" input
		title = "Instance source";
		guid = "{5620730D-AEFC-4C4A-B1DF-9377E808E27B}";
		type = reference;
		Name = "Source Object";
		UIType = "ReferenceWidget.ReferenceWidget.1"
			filter = "{6B579D20-3DC5-11D0-9449-00AA006D3165}";
			mode = "single";

Scripting: Getting the StrandPosition arrays

StrandPosition is an array of arrays: one array of positions for each strand.

Here’s a Python snippet:

from win32com.client import constants
xsi = Application

def dispFix( badDispatch ):
    import win32com.client.dynamic
    # Re-Wraps a bad dispatch into a working one:
    return win32com.client.dynamic.Dispatch(badDispatch)

attr = xsi.Selection(0).ActivePrimitive.Geometry.ICEAttributes( "StrandPosition" )
dataType = attr.DataType
data2D = attr.DataArray2D
for data in data2D:
   for elem in data:
      elem = dispFix(elem)
      xsi.LogMessage( "Vector3: " + str(elem.X) + ":" + str(elem.Y) + ":" + str(elem.Z) )

And here’s a JScript snippet:

a = Selection(0).ActivePrimitive.Geometry.ICEAttributes( "StrandPosition" );
LogMessage( ClassName(a) );

x = a.DataArray2D.toArray();
LogMessage( x.length );
for ( var i = 0; i < x.length; i++ )
   y = x[i].toArray();
   LogMessage( "=======================" );
   for ( var j = 0; j < y.length; j++ )
      LogMessage( y[j].X + ", " + y[j].Y + ", " + y[j].Z );

Getting values and fcurves for the port parameters of an ICE node

ICE nodes have ports, and the ports have parameters. It’s the parameters that you work with in an ICE node PPG.

For simple types such as float, integer and boolean, you can access the port parameter value through ICENodeInputPort.Value. However, for more complex types, like a 3D vector, you need to go through the ICENodeInputPort.Parameters.

In either case (simple or complex types), to get an Fcurve, you get a parameter and then use Parameter.Source.

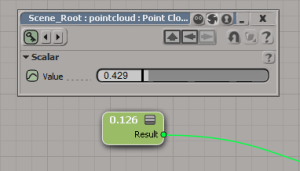

For example, suppose you have a Scalar node:
To get the value from a Scalar node, you’d do this:

si = Application
node = si.Dictionary.GetObject( "pointcloud.pointcloud.ICETree.ScalarNode" )
port = node.InputPorts(0)

# For scalars, you can just use the port.Value property
print port.Value

# Or you could go through the Parameters
print port.Parameters(0).Value
# 0.428628623486
# 0.428628623486

# It's a little confusing because the port and the parameter have the same name:
print port.FullName
print port.Parameters(0).FullName
# pointcloud.pointcloud.ICETree.ScalarNode.value
# pointcloud.pointcloud.ICETree.ScalarNode.value

# Now get the Fcurve
fcv = param.Source

Now consider the case of a 3D Vector node, where you have one port (value) and three parameters (value_x, value_y, and value_z):
In this case, you cannot use ICENodeInputPort.Value, so you have to go through the parameters collection:

si = Application
node = si.Dictionary.GetObject( "pointcloud.pointcloud.ICETree.3DVectorNode" )
port = node.InputPorts(0)
print port.FullName # pointcloud.pointcloud.ICETree.3DVectorNode.value
param = port.Parameters( 0 )
print param.FullName # pointcloud.pointcloud.ICETree.3DVectorNode.value_x
print param.Value # 0.933080613613

# Now get the Fcurve
fcv = param.Source

hat tip: Alan Fregtman

Scripting: Toggling the constraint compensation mode

Here’s one way, using the not operator.

si = Application

The “problem” with this approach is that you’re toggling between 0 and -1, not between 0 and 1 (when you click the CnsComp button in the UI, you set the pref to either 0 or 1). The -1 happens because not 0 is -1.

Application.LogMessage( True == 1 )
Application.LogMessage( False == 0 )
Application.LogMessage( not False == -1 )
# INFO : True
# INFO : True
# INFO : True

So here’s a couple of other ways to toggle the preference value:

si = Application
si = Application
toggle = [1,0]
