The case of Sendori64.dll and the Softimage startup crash


In this case, a Softimage user reported that on a machine where Softimage had worked on consistently for years, XSI.exe was now crashing at startup with the “Failed to save scene before system failure” error. He’d done all the troubleshooting steps, but still hadn’t found a solution.

It’s hard to resist a challenge like that, so I got my hands on the Process Monitor log, and it turned out to be a bit of an easy case. I went through the Process activity, and just before the crash (you can tell the crash point by where XSI.exe does a ProcessCreate on senddmp.exe), I took a look at the DLLs loaded by XSI.exe. Usually you’re looking for something that doesn’t belong, and when I saw Microsoft, Autodesk, Flexera, Apple, Apache, and…Sendori??? I thought I might have something.
sendori_process_monitor

The Google results for Sendori were a bit sketchy (a DNS redirector, yikes), so we removed it, and that fixed the startup crash.

Missing ICE nodes in the preset manager

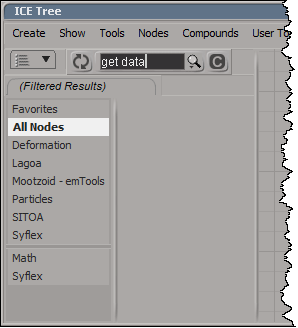

I’ve noticed this a handful of times, where a node like Get Data isn’t found in the preset manager. Clicking the Update button always fixes it for me.
get_data_missing
The last time this happened, instead of clicking Update, I started Process Monitor and did a few more searches in the preset manager. In my case, Softimage searching only the compounds, not the presets in %XSI_HOME%\Data\DSPresets\ICENodes. That’s why nodes like Get Data weren’t found.

Clicking Update forced Softimage to search both the compounds and presets.

Fixing DLL problems


If you ask me, these are all bad ideas:

  • Downloading missing DLLs from some DLL download site you found via a web search
  • Copying DLLs to your system32 folder
  • Copying DLLs from one version of Softimage to another

Fixing DLL problems involves doing some troubleshooting to figure out the root cause of the problem. Often, an error message about a DLL is just a symptom.

For missing DLLs, don’t download the DLL from some dll-download site. Usually a re-install of your software package, or an install of the appropriate redistributable package, will fix the problem.

Copying a DLL from one version of an application to another is a little crazy. You’re just asking for trouble 😉

Troubleshooting 101: Startup Crashes


Here’s the basic recipe for troubleshooting a startup crash:

See also:

Minidumps and crash logs


I don’t know how useful all these dump files and crash logs are; nobody ever asked me to get them from a customer. But anyway, here we go…

When you start a recent version of Softimage, it opens a minidump (.dmp) file in your User folder, eg:

$XSI_USERHOME/SOLIDANGLE-PCbb6ab18a449d4f6865bf0f0.dmp

If you don’t crash, then great, Softimage closes and removes the .dmp file on exit. But if you do crash, Softimage will write out a minidump, and maybe a few other crash logs.

  • SOLIDANGLE-PCbb6ab18a449d4f6865bf0f0.Command.txt
  • SOLIDANGLE-PCbb6ab18a449d4f6865bf0f0.dmp
  • SOLIDANGLE-PCbb6ab18a449d4f6865bf0f0.Plugin.txt
  • SOLIDANGLE-PCbb6ab18a449d4f6865bf0f0.ScriptLog.txt
  • SOLIDANGLE-PCbb6ab18a449d4f6865bf0f0.Views.txt

If you have Visual C++, you can open a .dmp and take a look. But in most cases I doubt it will help you much.
minidump

Plugin is a list of the loaded plugins, ScriptLog is the script history log, and Views is the current layout and views. Command is kinda interesting, because it looks like this:

[XSI::Mesh Grid] CreatePrim {F0B32DC7-7B9E-11D0-BDED-00A0243E36A8} {5C0CF8B6-C81E-11D2-80C3-00A0C9AC19A9}
[XSI::Set Value] SetValue {37EFCEF0-C8AF-11D1-8F33-00A0C982B651} {C089B901-8481-11D2-B118-00A024C79287}
[XSI::Set Value] SetValue {37EFCEF0-C8AF-11D1-8F33-00A0C982B651} {C089B901-8481-11D2-B118-00A024C79287}
Menu: Shaders>>Standard
[Custom Script Commands::AddMaterial] SITOA_AddMaterial {419D7E5D-38BF-7A61-1E88-105686422CEF} {001D605B-F285-4A60-80FA-10E63B2360D4}
[XSI::Shader Cnx Divot Pop-up Menu] UIMapButton {34F30CD4-12B8-11D3-AA89-00AA0068D2C0} {34F30CD2-12B8-11D3-AA89-00AA0068D2C0}
Menu: >>Checker &Board
Menu: >>Planar XZ
[XSI::Create Texture Projection] CreateProjection {87DCBB3E-880D-11D3-BC59-00A0C9612B97} {5C0CF8B6-C81E-11D2-80C3-00A0C9AC19A9}
[XSI::SetInstanceDataValue] SetInstanceDataValue {FAE0663A-2003-11D3-A06B-0000F875DF68} {FAE06638-2003-11D3-A06B-0000F875DF68}
[XSI::Set Value] SetValue {37EFCEF0-C8AF-11D1-8F33-00A0C982B651} {C089B901-8481-11D2-B118-00A024C79287}
[XSI::Set Value] SetValue {37EFCEF0-C8AF-11D1-8F33-00A0C982B651} {C089B901-8481-11D2-B118-00A024C79287}
[XSI::Set Value] SetValue {37EFCEF0-C8AF-11D1-8F33-00A0C982B651} {C089B901-8481-11D2-B118-00A024C79287}
[XSI::Orbit Tool] CamOrbitTool {212E0191-9027-11D0-B6CC-00AA0068BF56} {0461B2C6-0AE3-11D2-8065-00A0C955B335}
[XSI::Orbit Tool] CamOrbitTool {212E0191-9027-11D0-B6CC-00AA0068BF56} {0461B2C6-0AE3-11D2-8065-00A0C955B335}
Menu: Lights>>Skydome

I don’t what the GUIDs are for; I tried searching for some of them in the registry and in the Softimage install folder, and I came up empty.

Debugging interfaces not available – debugging is disabled..


I recently installed a new build of Softimage, and right from the start I was getting Debugging interfaces not available – debugging is disabled.. messages in the script history.

(Note that I use the Python installed with Softimage.)

I tracked the message down to the SetScriptSite function in
%XSI_HOME%\Application\python\Lib\site-packages\win32comext\axscript\client\framework.py

	#
	# IActiveScript
	def SetScriptSite(self, site):
		# We should still work with an existing site (or so MSXML believes 🙂
		self.scriptSite = site
		if self.debugManager is not None:
			self.debugManager.Close()
		import traceback
		try:
			import win32com.axdebug.axdebug # see if the core exists.
			import debug
			self.debugManager = debug.DebugManager(self)
		except pythoncom.com_error:
			# COM errors will occur if the debugger interface has never been
			# seen on the target system
			trace("Debugging interfaces not available - debugging is disabled..")
			self.debugManager = None
		except ImportError:
			#trace("Debugging extensions (axdebug) module does not exist - debugging is disabled..")
			self.debugManager = None
		except:
			traceback.print_exc()
			trace("*** Debugger Manager could not initialize - %s: %s" % (sys.exc_info()[0],sys.exc_info()[1]))
			self.debugManager = None

		try:
			self.lcid = site.GetLCID()
		except pythoncom.com_error:
			self.lcid = win32api.GetUserDefaultLCID()
		self.Reset()

Normally (in all my other Softimage installs on this computer), line 10 fails and fires an ImportError. This is invisible because the trace() on line 19 is commented out. So basically, the Softimage install anticipates that win32com.axdebug.axdebug won’t be found.

However, if win32com.axdebug.axdebug is found, then SetScriptSite tries to import debug, and when that fails, you get that Debugging interfaces not available – debugging is disabled.. message. That’s what was happening on my machine.

As usual, my friend Process Monitor was helpful in figuring this out.

My workaround, for now, is to comment out that trace() call on line 16.

DataRepository.GetCount versus FindObjects


Here’s a snippet that will go through a bunch of CLSIDs, find out how many objects with each CLSID are in the DataRepository (the internal object database), and how many objects with each CLSID can be found with FindObjects.

What’s a bit surprising is the difference in the two numbers. For example, in a blank new scene, there are 19 PoseCompensatorOps in the DataRepository, but FindObjects gets just four.

The idea behind doing this was that it might be helpful to troubleshoot problem scenes (eg something really weird might show up in a problem scene).

iObjTotal = 0

for x in CLSIDs:
	s = ""
	o = None
	iObjCurrent = XSIUtils.DataRepository.GetCount( x )
	iObjTotal = iObjTotal + iObjCurrent

	if iObjCurrent > 0:
		print "%i instances of CLSID %s" % ( iObjCurrent, x )
		o = Application.FindObjects( "", x )
		for i in range(o.Count):
			s += "   %s (%s)\n" % ( o(i), Application.ClassName( o(i) ) )

	print s

print iObjTotal

Here’s a full-fledged script .

And here’s the output for all the CLSIDs from the Softimage ComServerLocations registry entry (for a new scene in Softimage 2014 SP2, with Arnold installed…76 ArnoldRenderOptions properties, really? 🙂

# 1 instances of CLSID {0091ED92-CF66-4779-BE32-D51584138ECA}
#    Scene.Environments (ProjectItem)
# 6 instances of CLSID {00CB04DA-C252-11D0-A586-00A0C91412DE}
#    light.light.Associated Models (Group)
# 1 instances of CLSID {03356066-FB65-413E-AB28-D53B02C67048}
#    preferences.FaceRobot (Property)
# 7 instances of CLSID {0496EAB0-0ECF-11D1-ABF1-00A02485CECB}
#    Scene_Root (Model)
# 1 instances of CLSID {052601ED-0C90-4974-936D-F3761F963200}
#    preferences.scripting (Property)
# 27 instances of CLSID {07A92499-74B5-11D2-B33F-00105A1F4A37}
#    Views.ViewB.TopCamera.camdisp (Property)
#    Views.ViewA.UserCamera.camdisp (Property)
#    Views.ViewA.TopCamera.camdisp (Property)
#    Views.ViewA.FrontCamera.camdisp (Property)
#    Views.ViewA.RightCamera.camdisp (Property)
#    Camera.camdisp (Property)
#    Views.ViewA.SpotCamera.camdisp (Property)
#    Views.ViewA.SequencerCamera.camdisp (Property)
#    Views.ViewC.SpotCamera.camdisp (Property)
#    Views.ViewB.UserCamera.camdisp (Property)
#    Views.ViewB.FrontCamera.camdisp (Property)
#    Views.ViewB.RightCamera.camdisp (Property)
#    Views.ViewB.SpotCamera.camdisp (Property)
#    Views.ViewB.SequencerCamera.camdisp (Property)
#    Views.ViewC.UserCamera.camdisp (Property)
#    Views.ViewC.TopCamera.camdisp (Property)
#    Views.ViewC.FrontCamera.camdisp (Property)
#    Views.ViewC.RightCamera.camdisp (Property)
#    Views.ViewC.SequencerCamera.camdisp (Property)
#    Views.ViewD.UserCamera.camdisp (Property)
#    Views.ViewD.TopCamera.camdisp (Property)
#    Views.ViewD.FrontCamera.camdisp (Property)
#    Views.ViewD.RightCamera.camdisp (Property)
#    Views.ViewD.SpotCamera.camdisp (Property)
#    Views.ViewD.SequencerCamera.camdisp (Property)
# 1 instances of CLSID {09410AC8-71E7-11D3-B49F-00A0244EEB76}
#    TransientObjectContainer (CollectionItemLegacy)
# 1 instances of CLSID {0A4A1F03-AF67-4425-A83C-AC671EB4D9C9}
#    preferences.explorer (Property)
# 1 instances of CLSID {0B211A42-E71D-4E4F-B8EC-F684C996212B}
#    preferences.scene_search (Property)
# 6 instances of CLSID {0D29533C-B095-48F8-88B9-BDF8419453E7}
# 27 instances of CLSID {1152E9B1-545E-11D0-8466-00A024C7919C}
#    Views.ViewB.TopCamera.camera (Primitive)
#    Views.ViewC.TopCamera.camera (Primitive)
#    Views.ViewD.FrontCamera.camera (Primitive)
#    Views.ViewA.SpotCamera.camera (Primitive)
#    Views.ViewB.RightCamera.camera (Primitive)
#    Views.ViewA.SequencerCamera.camera (Primitive)
#    Views.ViewC.SpotCamera.camera (Primitive)
#    Views.ViewD.UserCamera.camera (Primitive)
#    Views.ViewD.SequencerCamera.camera (Primitive)
#    Camera.camera (Primitive)
#    Views.ViewA.RightCamera.camera (Primitive)
#    Views.ViewA.TopCamera.camera (Primitive)
#    Views.ViewC.SequencerCamera.camera (Primitive)
#    Views.ViewA.UserCamera.camera (Primitive)
#    Views.ViewB.SpotCamera.camera (Primitive)
#    Views.ViewA.FrontCamera.camera (Primitive)
#    Views.ViewB.UserCamera.camera (Primitive)
#    Views.ViewD.RightCamera.camera (Primitive)
#    Views.ViewB.FrontCamera.camera (Primitive)
#    Views.ViewC.FrontCamera.camera (Primitive)
#    Views.ViewB.SequencerCamera.camera (Primitive)
#    Views.ViewC.UserCamera.camera (Primitive)
#    Views.ViewD.TopCamera.camera (Primitive)
#    Views.ViewC.RightCamera.camera (Primitive)
#    Views.ViewD.SpotCamera.camera (Primitive)
# 1 instances of CLSID {11A264FD-B6D1-4CFC-82D3-C7E3A6ADE264}
#    preferences.simulation (Property)
# 29 instances of CLSID {11EBE301-A20C-11D0-8478-00A024C7919C}
#    Camera.visibility (Property)
#    Views.ViewC.SpotCamera.visibility (Property)
#    Camera_Interest.visibility (Property)
#    Camera_Root.visibility (Property)
#    light.visibility (Property)
#    Views.ViewD.SpotCamera.visibility (Property)
#    Views.ViewB.SpotCamera.visibility (Property)
#    Views.ViewA.SpotCamera.visibility (Property)
# 5 instances of CLSID {1265D911-AFA3-41F5-9AEA-7890A10A2812}
#    Views.ViewD.RenderRegion.mentalray (Property)
#    Passes.mentalray (Property)
#    Views.ViewC.RenderRegion.mentalray (Property)
#    Views.ViewB.RenderRegion.mentalray (Property)
#    Views.ViewA.RenderRegion.mentalray (Property)
# 10 instances of CLSID {12F18B50-D380-11D0-9225-08003629EA02}
# 1 instances of CLSID {145520D3-4E75-4539-863F-A60DB27CEE25}
#    preferences.General (Property)
# 7 instances of CLSID {16681C01-C066-11D2-A95B-00A024190119}
# 1 instances of CLSID {1A66378B-490A-4D5E-904B-28631EA027C9}
#    Scene.Passes (PassContainer)
# 1 instances of CLSID {2194FFE3-A0B2-4CAB-A3E8-FC8EDC9F159A}
# 1 instances of CLSID {25571B24-CB95-11D2-88C8-00A024EE6238}
#    PlayControl (Property)
# 1 instances of CLSID {288D850F-3056-4DFB-877A-30F0BAA6E1DE}
#    ReadAnimation (Property)
# 1 instances of CLSID {28DEC312-62B3-11D1-B79B-00A0243E3694}
# 2 instances of CLSID {293AFC8C-CEA7-4D05-8ED5-9E45E7CA619D}
#    preferences.SymmetryProperties (Property)
#    SymmetryProperties (Property)
# 1 instances of CLSID {2A9FFC70-5BA0-11D1-9987-00A0243F0E60}
#    preferences.duplicate (Property)
# 1 instances of CLSID {2F37DA65-86DF-48B4-911A-4819A374A5C5}
#     (CollectionItemLegacy)
# 4 instances of CLSID {2FABFBE6-679E-46C6-BF2E-B8AE4F383D8C}
#    Views.ViewC.RenderRegion (Property)
#    Views.ViewD.RenderRegion (Property)
#    Views.ViewA.RenderRegion (Property)
#    Views.ViewB.RenderRegion (Property)
# 1 instances of CLSID {311236AA-6D18-4198-8DD7-BD6E8B7D7525}
#    preferences.time (Property)
# 1 instances of CLSID {342FB217-15CC-4C38-AE4D-4240C0E900B1}
#    preferences.Camera (Property)
# 126 instances of CLSID {38506572-DD46-40E0-9A6A-708546381D04}
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Passes.Default_Pass.Main (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
#    Framebuffer (Framebuffer)
# 5 instances of CLSID {389E27DD-5FB0-11D2-B11C-00A0C906811E}
# 1 instances of CLSID {394EA0E9-78A1-4B48-A09F-A0F81A68AE5B}
#    preferences (Property)
# 1 instances of CLSID {3D17F684-7DBB-44A2-B4FF-3A40B29CCB02}
#    preferences.objectview (Property)
# 1 instances of CLSID {3DCC9BFD-16F7-4C45-94B4-3CD2228B2C5C}
#    preferences.preset_manager (Property)
# 1 instances of CLSID {3F48C534-0301-11D2-85A3-00C04F8EDF15}
#    BrushProperties (CollectionItemLegacy)
# 9 instances of CLSID {400CCE36-4400-11D0-BDDD-00A0241981E2}
#    Scene Defaults.polymsh (Primitive)
# 6 instances of CLSID {453C2160-61E1-11D1-AE8D-00A0244EEB76}
#    light.light.Associated Models.Selective Light (CollectionItemLegacy)
# 1 instances of CLSID {455D7C9B-F73E-4394-AB88-895AC9237ADF}
#    Passes.RenderOptions (SceneRenderProperty)
# 11 instances of CLSID {45BAD6C1-E075-11D1-999B-00A0243F0E60}
#    Scene_Root.geomapprox (Property)
# 1 instances of CLSID {46F7B210-C532-11D2-B924-00A024C78EE3}
#    application (CollectionItemLegacy)
# 1 instances of CLSID {479F2E10-3900-11D1-B0B3-00A024C79287}
#    Layers.Layer_Default (Layer)
# 10 instances of CLSID {4C4F7500-51EF-11D0-854E-00A02417D029}
#    __SHADERBALL_MATERIAL_LIBRARY__.Grid_Material (Material)
#    __SHADERBALL_MATERIAL_LIBRARY__.Apple_Material (Material)
#    __SHADERBALL_MATERIAL_LIBRARY__.Scene_Material (Material)
#    __SHADERBALL_MATERIAL_LIBRARY__.Stem_Material (Material)
#    __SHADERBALL_MATERIAL_LIBRARY__.Cloud_Material (Material)
#    __SHADERBALL_MATERIAL_LIBRARY__.Light_Material1 (Material)
#    __SHADERBALL_MATERIAL_LIBRARY__.Dark_Material1 (Material)
#    __SHADERBALL_MATERIAL_LIBRARY__.Squares_Material (Material)
#    __SHADERBALL_MATERIAL_LIBRARY__.Lines_Material1 (Material)
#    Sources.Materials.DefaultLib.Scene_Material (Material)
# 1 instances of CLSID {50B4532C-7316-4708-A15A-3A63E542E8CC}
#    preferences.render_tree (Property)
# 50 instances of CLSID {51BF4F41-6777-11D1-BE9F-00A024EE478D}
#    Views.ViewB.TopCamera (Camera)
#    Views.ViewC.SpotCamera (Camera)
#    Views.ViewC.UserCamera (Camera)
#    Views.ViewA.SpotCamera (Camera)
#    Views.ViewD.FrontCamera (Camera)
#    Camera_Interest (Null)
#    Views.ViewB.RightCamera (Camera)
#    Scene_Root (Model)
#    Views.ViewA.SequencerCamera (Camera)
#    Views.ViewA.FrontCamera (Camera)
#    Views.ViewC.RightCamera (Camera)
#    Views.ViewD.RightCamera (Camera)
#    Views.ViewB.FrontCamera (Camera)
#    Views.ViewA.RightCamera (Camera)
#    Views.ViewA.UserCamera (Camera)
#    Views.ViewA.TopCamera (Camera)
#    Views.ViewB.UserCamera (Camera)
#    Views.ViewB.SpotCamera (Camera)
#    Views.ViewB.SequencerCamera (Camera)
#    Views.ViewC.TopCamera (Camera)
#    Views.ViewC.FrontCamera (Camera)
#    Views.ViewC.SequencerCamera (Camera)
#    Views.ViewD.SpotCamera (Camera)
#    Views.ViewD.UserCamera (Camera)
#    Views.ViewD.TopCamera (Camera)
#    Views.ViewD.SequencerCamera (Camera)
#    Camera_Root (CameraRig)
#    Camera (Camera)
#    light (Light)
# 1 instances of CLSID {551C2B18-98F4-4553-A3DE-F20C24B39823}
#    preferences.xsi_explorer (Property)
# 1 instances of CLSID {5E4BD436-737B-4AD3-8E32-D7F9BB7B2573}
#    preferences.data_management (Property)
# 43 instances of CLSID {5FC0CCAE-3DC8-11D0-9449-00AA006D3165}
#    Views.ViewA.SpotCamera (Camera)
#    Views.ViewD.TopCamera (Camera)
#    Views.ViewA.SequencerCamera (Camera)
#    Views.ViewC.RightCamera (Camera)
#    Views.ViewD.UserCamera (Camera)
#    Views.ViewB.SequencerCamera (Camera)
#    Views.ViewA.UserCamera (Camera)
#    Views.ViewA.TopCamera (Camera)
#    Views.ViewB.RightCamera (Camera)
#    Views.ViewA.FrontCamera (Camera)
#    Views.ViewB.SpotCamera (Camera)
#    Views.ViewA.RightCamera (Camera)
#    Views.ViewB.UserCamera (Camera)
#    Views.ViewB.TopCamera (Camera)
#    Views.ViewC.SpotCamera (Camera)
#    Views.ViewD.SpotCamera (Camera)
#    Views.ViewB.FrontCamera (Camera)
#    Views.ViewD.RightCamera (Camera)
#    Views.ViewC.UserCamera (Camera)
#    Views.ViewC.TopCamera (Camera)
#    Views.ViewC.FrontCamera (Camera)
#    Views.ViewC.SequencerCamera (Camera)
#    Views.ViewD.FrontCamera (Camera)
#    Views.ViewD.SequencerCamera (Camera)
#    Camera_Root (CameraRig)
#    Camera (Camera)
#    Camera_Interest (Null)
#    light (Light)
# 11 instances of CLSID {600E50F1-52FC-11D2-A924-00A024190119}
# 3 instances of CLSID {600E50F2-52FC-11D2-A924-00A024190119}
# 9 instances of CLSID {60F7ADA0-7E12-11D0-9960-00A0243F0E60}
#    cls (CollectionItemLegacy)
# 2 instances of CLSID {61782E14-9177-412E-BF9B-2B44B9A668DD}
#    library_source (MaterialLibrary)
#    Sources.Materials.DefaultLib (MaterialLibrary)
# 1 instances of CLSID {62362303-A6D4-4658-9651-905C1ADB056F}
#    preferences.TweakNormals (Property)
# 1 instances of CLSID {639AD931-3896-11D3-97AC-00A0243E3463}
#    Camera.kine.global.IndpCns_E (CollectionItem)
# 13 instances of CLSID {6495C5C1-FD18-474E-9703-AEA66631F7A7}
#    __SHADERBALL_MATERIAL_LIBRARY__.Squares_Material.Lambert (Shader)
#    __SHADERBALL_MATERIAL_LIBRARY__.Stem_Material.Lambert (Shader)
#    __SHADERBALL_MATERIAL_LIBRARY__.Light_Material1.Lambert (Shader)
#    __SHADERBALL_MATERIAL_LIBRARY__.Scene_Material.Phong (Shader)
#    __SHADERBALL_MATERIAL_LIBRARY__.Dark_Material1.Lambert (Shader)
#    __SHADERBALL_MATERIAL_LIBRARY__.Lines_Material1.Lambert (Shader)
#    Sources.Materials.DefaultLib.Scene_Material.Phong (Shader)
#    light.light.arnold_distant_light (Shader)
# 1 instances of CLSID {64E231F5-5A70-4012-B351-4046650227EA}
#    preferences.fcurve_editor (Property)
# 2 instances of CLSID {6630D811-0699-11D1-B723-00AA0068BF56}
# 27 instances of CLSID {675F9E0C-6851-11D2-B335-00105A1F4A37}
#    Views.ViewA.SpotCamera.camvis (Property)
#    Views.ViewD.FrontCamera.camvis (Property)
#    Views.ViewC.TopCamera.camvis (Property)
#    Views.ViewD.TopCamera.camvis (Property)
#    Views.ViewA.UserCamera.camvis (Property)
#    Views.ViewA.TopCamera.camvis (Property)
#    Views.ViewA.FrontCamera.camvis (Property)
#    Views.ViewB.FrontCamera.camvis (Property)
#    Views.ViewA.RightCamera.camvis (Property)
#    Views.ViewA.SequencerCamera.camvis (Property)
#    Views.ViewB.UserCamera.camvis (Property)
#    Views.ViewB.TopCamera.camvis (Property)
#    Views.ViewB.RightCamera.camvis (Property)
#    Views.ViewB.SpotCamera.camvis (Property)
#    Views.ViewB.SequencerCamera.camvis (Property)
#    Views.ViewC.UserCamera.camvis (Property)
#    Views.ViewC.FrontCamera.camvis (Property)
#    Views.ViewC.RightCamera.camvis (Property)
#    Views.ViewC.SequencerCamera.camvis (Property)
#    Views.ViewC.SpotCamera.camvis (Property)
#    Views.ViewD.UserCamera.camvis (Property)
#    Views.ViewD.RightCamera.camvis (Property)
#    Views.ViewD.SpotCamera.camvis (Property)
#    Views.ViewD.SequencerCamera.camvis (Property)
#    Camera.camvis (Property)
# 1 instances of CLSID {68520F4D-333E-44F0-B76D-0E9527F47497}
#    preferences.dopesheet (Property)
# 1 instances of CLSID {6A4AA345-4253-11D0-B148-00A02485CECB}
#    Scene (Scene)
# 1 instances of CLSID {6B00918D-D1F8-44B6-B6A1-5608971A2B84}
#    preferences.MaterialManager (Property)
# 1 instances of CLSID {6B2F8E3E-3BE3-45A3-9187-094616A04ACC}
#    preferences.SnapProperties (Property)
# 27 instances of CLSID {6B3772E6-27C1-11D3-A280-08003658D403}
#    Views.ViewD.FrontCamera.rotoscope (Property)
#    Views.ViewB.RightCamera.rotoscope (Property)
#    Views.ViewD.TopCamera.rotoscope (Property)
#    Views.ViewA.TopCamera.rotoscope (Property)
#    Views.ViewA.UserCamera.rotoscope (Property)
#    Views.ViewA.FrontCamera.rotoscope (Property)
#    Views.ViewA.RightCamera.rotoscope (Property)
#    Views.ViewA.SpotCamera.rotoscope (Property)
#    Views.ViewA.SequencerCamera.rotoscope (Property)
#    Views.ViewB.UserCamera.rotoscope (Property)
#    Views.ViewB.TopCamera.rotoscope (Property)
#    Views.ViewB.FrontCamera.rotoscope (Property)
#    Views.ViewB.SpotCamera.rotoscope (Property)
#    Views.ViewB.SequencerCamera.rotoscope (Property)
#    Views.ViewC.UserCamera.rotoscope (Property)
#    Views.ViewC.TopCamera.rotoscope (Property)
#    Views.ViewC.FrontCamera.rotoscope (Property)
#    Views.ViewC.RightCamera.rotoscope (Property)
#    Views.ViewC.SpotCamera.rotoscope (Property)
#    Views.ViewC.SequencerCamera.rotoscope (Property)
#    Views.ViewD.UserCamera.rotoscope (Property)
#    Views.ViewD.RightCamera.rotoscope (Property)
#    Views.ViewD.SpotCamera.rotoscope (Property)
#    Views.ViewD.SequencerCamera.rotoscope (Property)
#    Camera.rotoscope (Property)
# 1 instances of CLSID {6D81DA53-61DF-11D1-83C1-00A0243E268D}
#    ViewportCapture (CollectionItemLegacy)
# 24 instances of CLSID {72936430-9B0C-4167-8CA7-C30FC2188BB9}
#    XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    Views.ViewB.SequencerCamera.camera.XSISequencerCameraPrimOp (CustomOperator)
#    Views.ViewC.SequencerCamera.camera.XSISequencerCameraPrimOp (CustomOperator)
#    Views.ViewA.SequencerCamera.camera.XSISequencerCameraPrimOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    Views.ViewC.SequencerCamera.kine.global.XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    Views.ViewD.SequencerCamera.kine.global.XSISequencerCameraKineOp (CustomOperator)
#    XSISequencerCameraKineOp (CustomOperator)
#    Views.ViewB.SequencerCamera.kine.global.XSISequencerCameraKineOp (CustomOperator)
#    Views.ViewA.SequencerCamera.kine.global.XSISequencerCameraKineOp (CustomOperator)
#    Views.ViewD.SequencerCamera.camera.XSISequencerCameraPrimOp (CustomOperator)
# 1 instances of CLSID {74895A03-F74D-11D0-96C5-00A024191BAC}
#    DeviceManager (DeviceCollection)
# 76 instances of CLSID {76332571-D242-11D0-B69C-00AA003B3EA6}
#    preferences.Cg_Display (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    preferences.ICEOperators (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Passes.Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    preferences.Arnold Render (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Views.ViewC.RenderRegion.Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Arnold_Render_Options (CustomProperty)
#    Views.ViewD.RenderRegion.Arnold_Render_Options (CustomProperty)
#    Views.ViewB.RenderRegion.Arnold_Render_Options (CustomProperty)
#    Views.ViewA.RenderRegion.Arnold_Render_Options (CustomProperty)
# 1 instances of CLSID {76AA7786-F7E2-4BB6-9FC3-D56ED34EDF68}
#    preferences.MaterialPanel (Property)
# 19 instances of CLSID {77F74C81-7010-11D1-96F5-00A0243E3463}
#    Camera_Root.kine.local (KinematicState)
#    Camera.kine.local (KinematicState)
#    Camera_Interest.kine.local (KinematicState)
#    light.kine.local (KinematicState)
# 1 instances of CLSID {7954E245-8EF2-48AB-A07D-8DEEFDD9FF23}
#    preferences.netview (Property)
# 1 instances of CLSID {79EEBE8E-0ABA-4240-A033-6B02858250D9}
#    PaintTool (CollectionItemLegacy)
# 1 instances of CLSID {7A1BB9D6-58A3-49D6-84BA-39429EDAD489}
#    Passes.Default_Pass.Background_Lights_Partition (Partition)
# 66 instances of CLSID {7ABF1486-448D-11D0-BE37-00A024EE478D}
#    Camera_Root.kine.global (KinematicState)
#    global (KinematicState)
#    Views.ViewC.SequencerCamera.kine.global (KinematicState)
#    global (KinematicState)
#    global (KinematicState)
#    Views.ViewC.UserCamera.kine.global (KinematicState)
#    global (KinematicState)
#    Views.ViewC.SpotCamera.kine.global (KinematicState)
#    Views.ViewA.SequencerCamera.kine.global (KinematicState)
#    Views.ViewD.RightCamera.kine.global (KinematicState)
#    global (KinematicState)
#    Views.ViewC.FrontCamera.kine.global (KinematicState)
#    Views.ViewA.FrontCamera.kine.global (KinematicState)
#    Camera.kine.global (KinematicState)
#    global (KinematicState)
#    global (KinematicState)
#    Views.ViewB.SpotCamera.kine.global (KinematicState)
#    global (KinematicState)
#    Views.ViewD.UserCamera.kine.global (KinematicState)
#    global (KinematicState)
#    global (KinematicState)
#    global (KinematicState)
#    global (KinematicState)
#    Views.ViewA.RightCamera.kine.global (KinematicState)
#    global (KinematicState)
#    global (KinematicState)
#    global (KinematicState)
#    global (KinematicState)
#    Views.ViewB.FrontCamera.kine.global (KinematicState)
#    Views.ViewD.SpotCamera.kine.global (KinematicState)
#    Views.ViewB.SequencerCamera.kine.global (KinematicState)
#    Views.ViewB.TopCamera.kine.global (KinematicState)
#    Views.ViewB.RightCamera.kine.global (KinematicState)
#    Views.ViewD.FrontCamera.kine.global (KinematicState)
#    Views.ViewD.SequencerCamera.kine.global (KinematicState)
#    Views.ViewA.SpotCamera.kine.global (KinematicState)
#    Scene_Root.kine.global (KinematicState)
#    Views.ViewA.UserCamera.kine.global (KinematicState)
#    Views.ViewA.TopCamera.kine.global (KinematicState)
#    light.kine.global (KinematicState)
#    Views.ViewB.UserCamera.kine.global (KinematicState)
#    Views.ViewC.TopCamera.kine.global (KinematicState)
#    Views.ViewC.RightCamera.kine.global (KinematicState)
#    Views.ViewD.TopCamera.kine.global (KinematicState)
#    Camera_Interest.kine.global (KinematicState)
# 4 instances of CLSID {80183202-4F8A-11D0-9BAE-00AA0068BF56}
#     (CollectionItemLegacy)
#     (CollectionItemLegacy)
#     (CollectionItemLegacy)
#     (CollectionItemLegacy)
# 1 instances of CLSID {80D1207E-1C0D-4DEF-AF30-387384DCA4BA}
#    preferences.Compositing (Property)
# 1 instances of CLSID {82443034-51B1-11D0-85AE-080036E93203}
#    Passes.Default_Pass.RenderOptions (CollectionItemLegacy)
# 1 instances of CLSID {82443035-51B1-11D0-85AE-080036E93203}
#    ViewRenderOptions (CollectionItemLegacy)
# 1 instances of CLSID {82C99CA9-3D7E-4A1B-B015-1F4CBF2113C6}
#    Context (CollectionItemLegacy)
# 1 instances of CLSID {83B04845-8E86-4C6C-8196-A6BAA4A657DF}
# 1 instances of CLSID {8A323F88-7344-48F5-907E-2E698A066A60}
#    Sources.Materials (CollectionItemLegacy)
# 1 instances of CLSID {8B291AD2-AAC2-4F09-A027-B47E6C11E4AC}
#    Passes.Default_Pass.Background_Objects_Partition (Partition)
# 1 instances of CLSID {8C4CE8C0-4884-11D5-897C-00D0B71DA41F}
#    LoaderOptions (Property)
# 1 instances of CLSID {8FB0A8D8-2AA2-11D4-B6A3-006094EB029C}
#    RefPlanes (CollectionItemLegacy)
# 19 instances of CLSID {90994BB1-D357-11D2-8B80-00A024EE586F}
#    Camera_Root.kine.local.PoseCompensatorOp (CollectionItem)
#    Camera.kine.local.PoseCompensatorOp (CollectionItem)
#    Camera_Interest.kine.local.PoseCompensatorOp (CollectionItem)
#    light.kine.local.PoseCompensatorOp (CollectionItem)
# 1 instances of CLSID {91B2319A-9DB1-11D1-80CF-00A0248F9397}
#    preferences.Scenecolors (Property)
# 1 instances of CLSID {922D62D1-3208-4E92-9744-8E8D0816B4C8}
#    preferences.Polygon (Property)
# 1 instances of CLSID {961496BA-7EF2-4E91-A493-2C828E61AC2D}
#    preferences.shaderball (Property)
# 1 instances of CLSID {9694B47E-C847-11D3-B7D4-0008C7A011A6}
#    Camera_Interest.CameraInterest (Primitive)
# 1 instances of CLSID {973E6F73-CD0F-11D3-A88B-00C04F8EDF15}
#    Camera_Root.CameraRoot (Primitive)
# 1 instances of CLSID {97599A5D-A2BC-468A-AC6E-FB2F5E7E75D6}
#    preferences.keying_panel (Property)
# 6 instances of CLSID {98859160-CD10-11D3-A88B-00C04F8EDF15}
# 1 instances of CLSID {98CAD7D1-393A-11D2-8B40-00A024EE586F}
#    Camera.kine.dircns (Constraint)
# 1 instances of CLSID {997E1E42-7DC9-43A3-8B78-2B8352382703}
#    preferences.plugin_manager (Property)
# 2 instances of CLSID {9AF45FC0-8DC4-11D4-B915-0800690C8BD0}
# 6 instances of CLSID {9B82ACED-9947-4FD0-87AE-4AC0A3D42BEA}
# 1 instances of CLSID {9DC6AEC5-0D8D-4710-8C78-46748D6B722A}
#    preferences.camera_sequencer (Property)
# 1 instances of CLSID {9E1CD6BD-A30E-49E4-A1CE-57AFB5502D07}
#    preferences.layercontrol (Property)
# 1 instances of CLSID {9E4533F4-E6CF-4FE4-B8D4-15B32E954A81}
#    preferences.Display (Property)
# 1 instances of CLSID {9E734591-4B92-11D4-B7F3-0008C7A011A6}
# 1 instances of CLSID {A04BA012-0B7F-4E8C-8B81-EF09820A875B}
#    preferences.units (Property)
# 14 instances of CLSID {A0D4A4E1-7B7A-445B-A871-C55A9988DFDC}
#    Scene_Material (Material)
# 6 instances of CLSID {A15B3913-073F-11D4-B7DF-0008C7A011A6}
#    refplane (Property)
#    RefPlanes.XY (Property)
#    RefPlanes.XZ (Property)
#    RefPlanes.View (Property)
#    RefPlanes.Transform (Property)
#    RefPlanes.YZ (Property)
# 19 instances of CLSID {A2C21F92-96E3-11D3-B8A0-00A0C92469BE}
#    Camera_Root.kine.local.ParentPoseAndPoseCns_D (CollectionItem)
#    Camera.kine.local.ParentPoseAndPoseCns_D (CollectionItem)
#    Camera_Interest.kine.local.ParentPoseAndPoseCns_D (CollectionItem)
#    light.kine.local.ParentPoseAndPoseCns_D (CollectionItem)
# 1 instances of CLSID {A8BF89CA-1025-11D2-B5FD-006094EB029C}
#    Scene.Audio Container Properties (Property)
# 1 instances of CLSID {AD2412A8-3426-47CD-B65F-E98A2093130D}
#    dotXSIImportOptions (Property)
# 1 instances of CLSID {ADDBD2A0-85A4-11D4-8C31-009027BC3A0E}
# 6 instances of CLSID {B0A5373D-E8B3-4816-BC5A-A6A31E4B4158}
# 4 instances of CLSID {B49C1779-D1FE-4FB6-B9DB-9C253E3F3648}
# 1 instances of CLSID {B4ACAE9C-4F44-43D5-A591-295B61EE52A3}
#    preferences.Interaction (Property)
# 1 instances of CLSID {B533F218-5FDD-4800-ADE0-06534BDFD6B4}
#    preferences.weighteditor (Property)
# 1 instances of CLSID {B54D8594-0F35-4CB8-876D-0C88DC45BA3C}
#    preferences.Select (Property)
# 1 instances of CLSID {B8AD87C9-EE5C-4FDF-A51F-8DB121CB8991}
#    WriteAnimation (Property)
# 1 instances of CLSID {BBEED5A8-7763-11D2-977A-00A0C982C728}
#    FramePreviewSettings (CollectionItemLegacy)
# 1 instances of CLSID {BD407DFB-4120-4898-8475-44150D6B522C}
#    preferences.shape_animation (Property)
# 1 instances of CLSID {BDC5A1EE-EEBE-4CD2-9443-A5B7AF67ED22}
#    preferences.schematic (Property)
# 1 instances of CLSID {BFDAF164-5DD8-4422-9F1E-35527CDC2A02}
#    Passes.Default_Pass (Pass)
# 1 instances of CLSID {C23A9A23-5260-4E80-9165-F8673D9086B7}
#    preferences.modeling (Property)
# 2 instances of CLSID {C27897E0-1B97-11D4-AE61-00A0C96E63E1}
# 57 instances of CLSID {C4EF9563-8317-42EA-849D-58705A9B32B5}
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    Views.ViewA.RenderRegion.HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    Views.ViewD.RenderRegion.HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    Passes.HardwareRenderer (Property)
#    Views.ViewC.RenderRegion.HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    HardwareRenderer (Property)
#    Views.ViewB.RenderRegion.HardwareRenderer (Property)
# 1 instances of CLSID {C68A1E9A-8879-4F7A-9247-56B5F602E795}
#    preferences.icetree (Property)
# 1 instances of CLSID {CA7AB48C-EE62-4675-8BE6-DE979CB63692}
#    preferences.animation (Property)
# 1 instances of CLSID {CBA2D702-8E67-47B1-A0D2-89354E33C241}
#    preferences.Tweak (Property)
# 4 instances of CLSID {CCACF571-B1B8-11D3-9E9B-009027BC38DD}
#    Scene_Root.display (Property)
# 1 instances of CLSID {CE38DE41-5C05-11D4-B4A2-00D0B71903E4}
#    Scene Defaults (Property)
# 66 instances of CLSID {D557CF35-57E3-11D2-8B5A-00A024EE586F}
#    Views.ViewA.RightCamera.kine (Kinematics)
#    Views.ViewD.UserCamera.kine (Kinematics)
#    Views.ViewB.TopCamera.kine (Kinematics)
#    kine (Kinematics)
#    kine (Kinematics)
#    kine (Kinematics)
#    kine (Kinematics)
#    Views.ViewD.SpotCamera.kine (Kinematics)
#    Views.ViewA.SequencerCamera.kine (Kinematics)
#    kine (Kinematics)
#    Views.ViewB.FrontCamera.kine (Kinematics)
#    kine (Kinematics)
#    kine (Kinematics)
#    kine (Kinematics)
#    Views.ViewA.SpotCamera.kine (Kinematics)
#    kine (Kinematics)
#    kine (Kinematics)
#    kine (Kinematics)
#    kine (Kinematics)
#    Views.ViewC.RightCamera.kine (Kinematics)
#    kine (Kinematics)
#    Views.ViewC.FrontCamera.kine (Kinematics)
#    kine (Kinematics)
#    kine (Kinematics)
#    Views.ViewD.TopCamera.kine (Kinematics)
#    kine (Kinematics)
#    Views.ViewB.SpotCamera.kine (Kinematics)
#    Views.ViewD.SequencerCamera.kine (Kinematics)
#    Views.ViewD.FrontCamera.kine (Kinematics)
#    Views.ViewB.SequencerCamera.kine (Kinematics)
#    Views.ViewA.FrontCamera.kine (Kinematics)
#    Views.ViewC.SequencerCamera.kine (Kinematics)
#    Scene_Root.kine (Kinematics)
#    Views.ViewB.RightCamera.kine (Kinematics)
#    Views.ViewA.UserCamera.kine (Kinematics)
#    Views.ViewC.UserCamera.kine (Kinematics)
#    Views.ViewA.TopCamera.kine (Kinematics)
#    Views.ViewB.UserCamera.kine (Kinematics)
#    Views.ViewC.TopCamera.kine (Kinematics)
#    Views.ViewC.SpotCamera.kine (Kinematics)
#    Views.ViewD.RightCamera.kine (Kinematics)
#    Camera_Root.kine (Kinematics)
#    Camera.kine (Kinematics)
#    Camera_Interest.kine (Kinematics)
#    light.kine (Kinematics)
# 1 instances of CLSID {D7D93C1D-902E-444E-99DD-C6A3D08627C2}
#    preferences.rendering (Property)
# 6 instances of CLSID {DBA00978-85BE-4D94-AEC5-422ECB4EE4BD}
# 1 instances of CLSID {DC84D7A3-ABA5-4BBF-9E09-A9B6FFE86983}
#    preferences.output_format (Property)
# 4 instances of CLSID {DD4BA6C4-60F1-11D1-8680-00A0C91412D9}
#    Scene_Root.AmbientLighting (Property)
# 19 instances of CLSID {DD804FBB-84DE-11D3-B89F-00A0C92469BE}
#    Camera_Interest.kine.global.ParentPoseCns_E (CollectionItem)
#    Camera_Root.kine.global.ParentPoseCns_E (CollectionItem)
#    Camera.kine.global.ParentPoseCns_E (CollectionItem)
#    light.kine.global.ParentPoseCns_E (CollectionItem)
# 1 instances of CLSID {DDA7A96E-7E81-433D-89BF-94FC82D71C06}
#    sequencerplotting (Property)
# 1 instances of CLSID {E068B6F5-CC79-48C4-92B1-1A265ACA7190}
#    PaintTool (CollectionItemLegacy)
# 2 instances of CLSID {E0CBD759-BDD7-44D1-8730-981472AFC5E9}
#    preferences.TransformProperties (Property)
#    TransformProperties (Property)
# 1 instances of CLSID {E2A86051-F669-11D1-8D60-080036F3CC02}
#    FCurve (FCurve)
# 1 instances of CLSID {E2FE2EF1-FEA2-41DE-8C3C-7FB1E819AAED}
#    preferences.transformgroup (Property)
# 11 instances of CLSID {E4DD8E40-1E1C-11D0-AA2E-00A0243E34C4}
# 1 instances of CLSID {E662A425-C427-4D18-9669-6858E59F6FA1}
#    preferences.texture_layer_editor (Property)
# 1 instances of CLSID {E8734CFA-4185-4CEA-A7E0-24E45ACA26D2}
#    preferences.animation_mixer (Property)
# 1 instances of CLSID {E9EF4BE1-3A2B-11D3-97AC-00A0243E3463}
#    Camera.kine.dircns.PosePoseCns_D (CollectionItem)
# 1 instances of CLSID {EA3AB345-F8A8-488D-826B-6943CFF9C604}
#    dotXSIExportOptions (Property)
# 1 instances of CLSID {EA861F7A-D67C-11D2-88C9-00A024EE6238}
#    Views (CollectionItemLegacy)
# 4 instances of CLSID {EA861F7B-D67C-11D2-88C9-00A024EE6238}
#    Views.ViewA (CollectionItemLegacy)
#    Views.ViewB (CollectionItemLegacy)
#    Views.ViewC (CollectionItemLegacy)
#    Views.ViewD (CollectionItemLegacy)
# 1 instances of CLSID {EC8D460F-40F1-439D-AE59-8F81AA2871F3}
#    preferences.scripteditor (Property)
# 1 instances of CLSID {EE4D73A9-3962-45C1-86CB-77562467BB52}
#    preferences.ViewCube (Property)
# 1 instances of CLSID {EE641152-A847-4F36-B5FD-FCA002F90634}
#    PaintTool.FloodFillTemplate (CollectionItemLegacy)
# 1 instances of CLSID {F16DA201-13A2-11D3-B37A-00105A1E70DE}
#    Scene.Sources (CollectionItemLegacy)
# 1 instances of CLSID {F16DA202-13A2-11D3-B37A-00105A1E70DE}
#    Scene.Clips (CollectionItemLegacy)
# 6 instances of CLSID {F3705C30-5204-11D0-8298-00A0243E366B}
#    light.light (Primitive)
# 1 instances of CLSID {F946644B-B42A-4063-B653-A0E884EA4D29}
#    preferences.SceneDebugging (Property)
# 1 instances of CLSID {FCA78BFF-DFC2-4610-8455-FA5C9B980BB7}
#    preferences.texture_editor (Property)
# 1 instances of CLSID {FD0EA020-390C-11D1-B0B3-00A024C79287}
#    Scene.Layers (CollectionItemLegacy)
# 1 instances of CLSID {FF22E061-5CED-4ED1-B6F3-58FD451FFDE5}
#    preferences.animation_editor (Property)
# 1034

Fit Subcomponent UVs To Image


When you click Fit Subcomponent UVs to Image in the Texture Projection property editor, you’ll get these ERRORs in the script history:

' ERROR : Object doesn't support this property or method: 'in_uvprops.IsClassOf' - [line 1842 in C:\Program Files\Autodesk\Softimage 2014\Application\DSScripts\Texture.vbs]
' ERROR :  - [line 25]
' ERROR : Property Page Script Logic Error
' ERROR :    [23] 		end if
' ERROR :    [24] (null)
' ERROR :   >[25] 		FitSubcomponentUVsToImage Pset.InspectedObjects, filtered
' ERROR :    [26] 	End Sub

The fix for this requires that you edit $XSI_HOME\Application\DSScripts\Texture.vbs. You’ll probably need to edit the Permissions on Texture.vbs so that you have Full Control or Modify permissions.

Find line 1842 in Texture.vbs, and then replace the if..else..endif with this:

set coll = CreateObject("XSI.Collection")
if in_uvprops.Type = "XSICollection" then
	set coll = in_uvprops
elseif in_uvprops.IsClassOf( siUVPropertyID ) = True then
	coll.Add in_uvprops
end if

The fix I posted on the Softimage mailing list awhile ago was a one-liner that would enable you to use Fit Subcomponent UVs to Image on a single texture projection. This fix will work if you have multiple texture projections in the property editor.
