Saturday snippet: Parsing a file from a batch file

Posted on by
Reply

From the 2014 version of setenv.bat, which uses the for command to parse the [new] License.env file.

for /f "delims== tokens=1,2*" %%i in (License.env) do (
	if "%%i"=="SOFTIMAGE_LICENSE_METHOD" (
		set SILicMethod=%%j
	) else if "%%i"=="ADSKFLEX_LICENSE_FILE" (
		set _ADSK_LicServers=%%j
	)
)

License.env is a file that looks something like this:

rem Licensing method: Standalone | MSSA | Network
SOFTIMAGE_LICENSE_METHOD=Network

rem License servers specified from the setup. Format: [port1]@host1[;[port2]@host2]...
ADSKFLEX_LICENSE_FILE=2080@somewhere.someplace.com

ICE: Doing an element-wise stretch on an array

Posted on by
Reply

I’m not sure “element-wise stretch” is the right terminology, but what I mean is suppose you want to build a new array by repeating the original elements N times. For example, suppose you have the array [1,2], and you want to turn it into [1,1,1,1,2,2,2,2].

Here’s a little ICE technique to do just that:

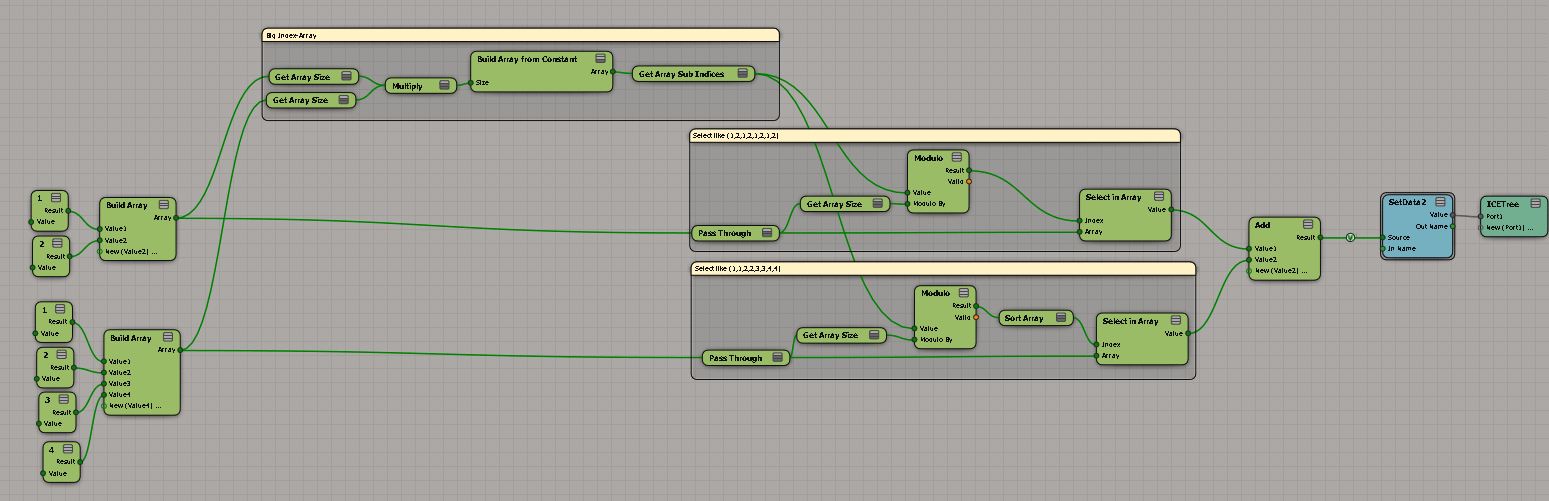

elmentwisestretch

This tree relies on Divide by Scalar truncating the scalar result to make it an integer.

Softimage 2014 What’s Fixed Word Cloud

Posted on by
5

Here’s a word cloud for the bugs fixed list. This isn’t the raw word count; I did a few things like adding repeats of the word “Fixed” for every SOFT id number, and repeats of the category name (eg “ICE”) for every fix in that category.

So the size of the word “ICE” is a combination of the number of ICE fixes (32) plus the number of occurrences of the word “ICE” in the bug descriptions (29).

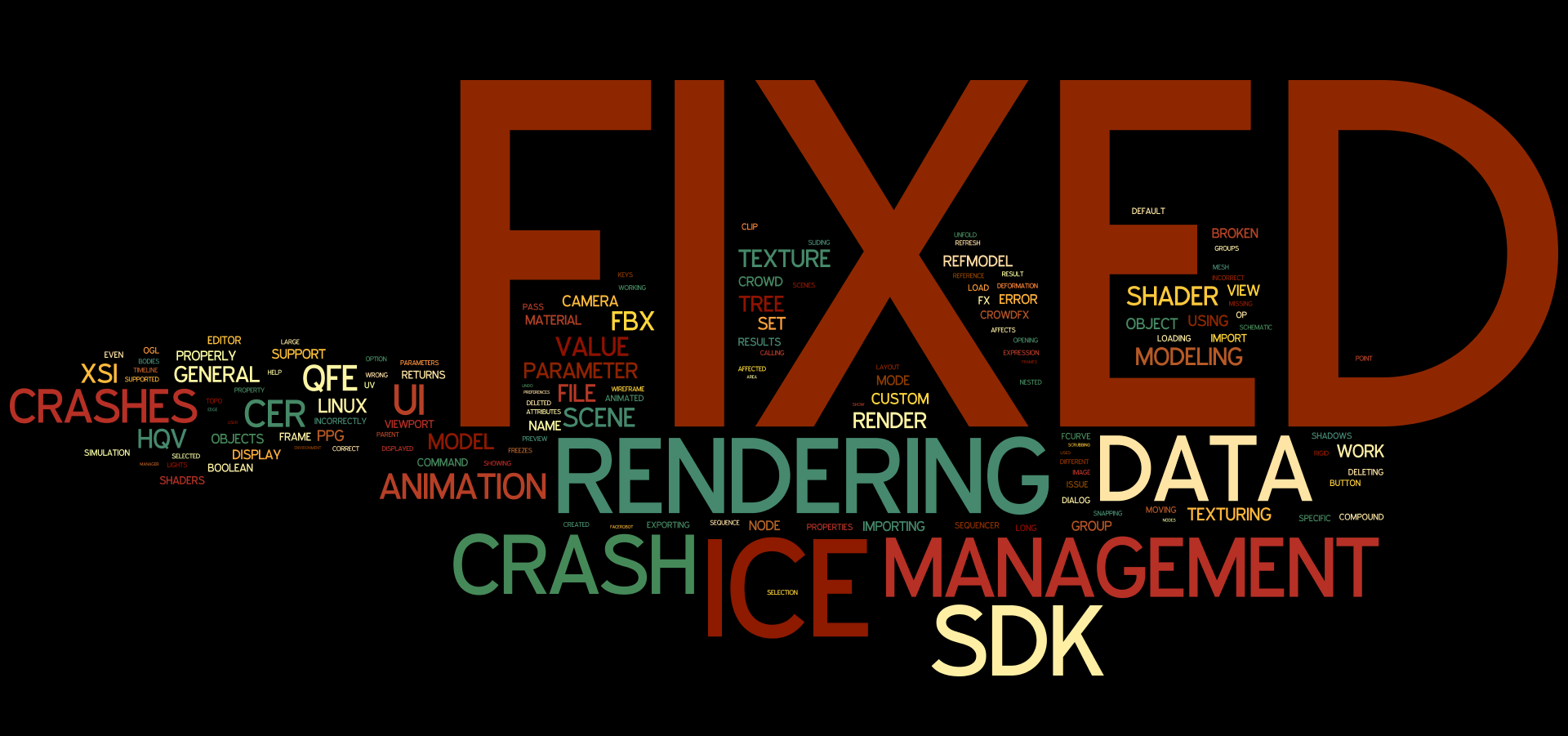

whatsfixed2014

The word “FIXED” is a bit distracting, so here’s a version without it:

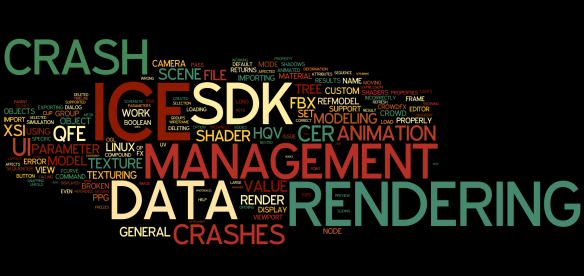

whatsfixed2014_1

Aha! Setting DataArray2D with JScript

Posted on by
Reply

It came to me this morning while I was lying in the dentist chair.
I almost had it last Thursday.
Hat tip: Ho Chung

//var o = Selection(0)
//var oICEAttrMats = o.ActivePrimitive.AddICEAttribute("MyString", siICENodeDataString, siICENodeStructureArray, siICENodeContextSingleton);


var o = Selection(0);
var a = o.ActivePrimitive.ICEAttributes("MyString");


sa = getSafeArray( [ "a", "b", "c" ] );
//jsa = new VBArray( sa ).toArray();

sa1 = getSafeArray( [sa] );

a.DataArray2D = sa1;

//
// Get a safearray from a JScript array
//
function getSafeArray(jsArr) {
    var dict = new ActiveXObject("Scripting.Dictionary");
    for (var i = 0; i < jsArr.length; i++)
    dict.add(i, jsArr[i]);
    return dict.Items();
}

Screenshots of the week

Posted on by
3

Softimage 2014 documentation splash page…what it might look like
2014docs

Twister nodes
by Tekano
Capture_twister_nodes

Setting materials IDs for clusters

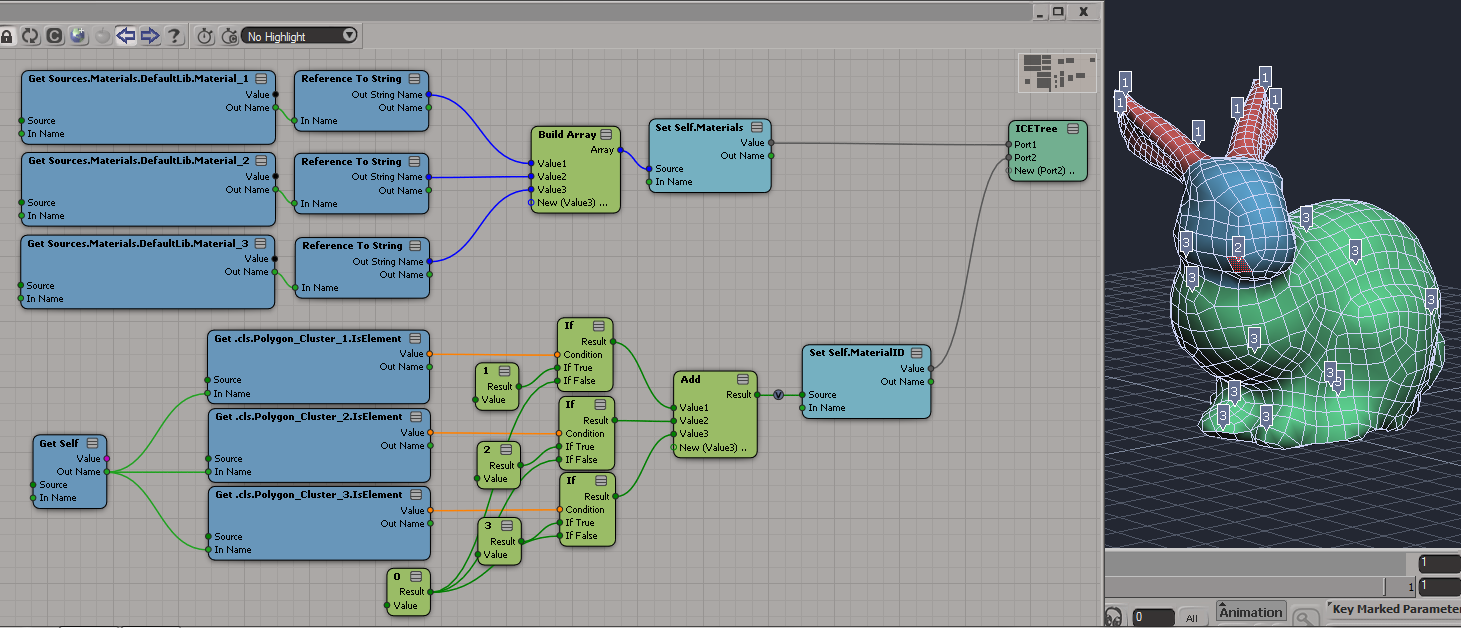

by iamVFX
Snpi9lH

Effect trigger by name
by fabricio.chamon
effect_trigger_by_name

Fun with ICE: Wheel\
by Andrew Skoblyanoff

Closest location on strand
by Edy Susanto Lim
closest_strandPos02
Closest location on strand
by Vincent Ullmann
result

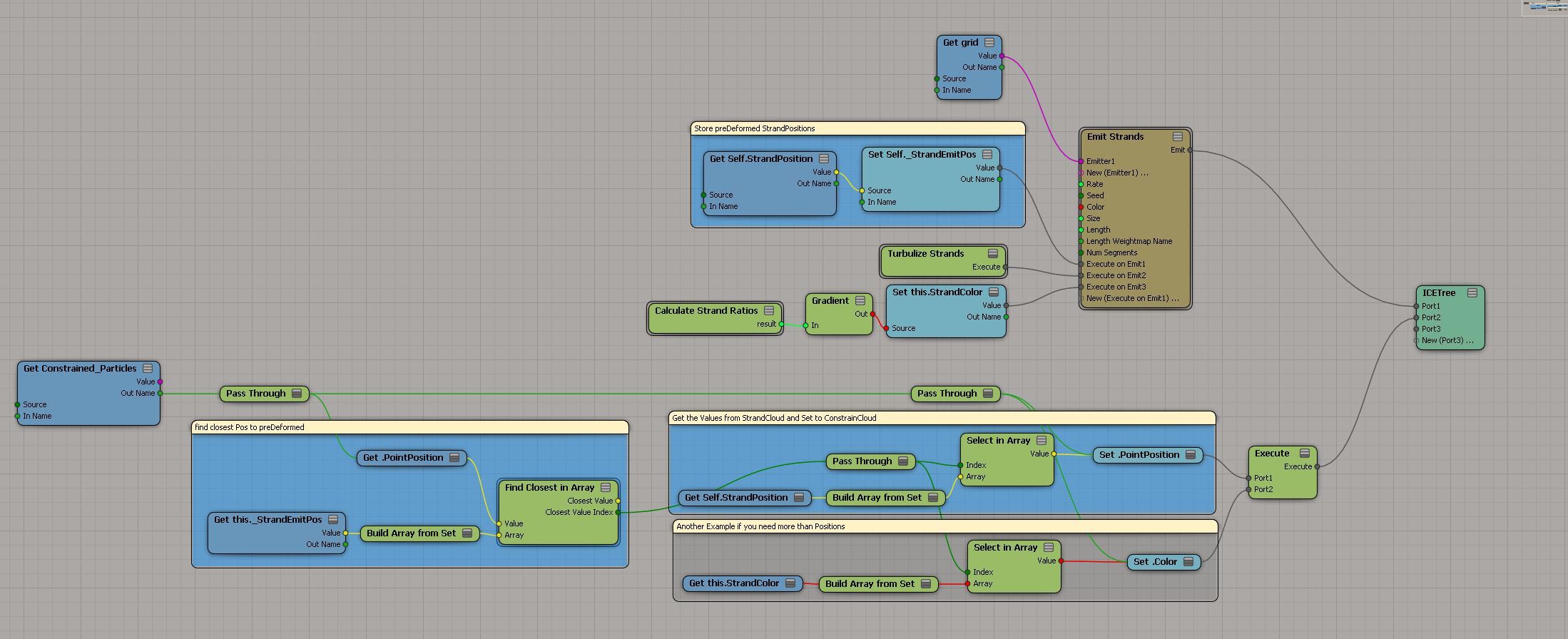

tree

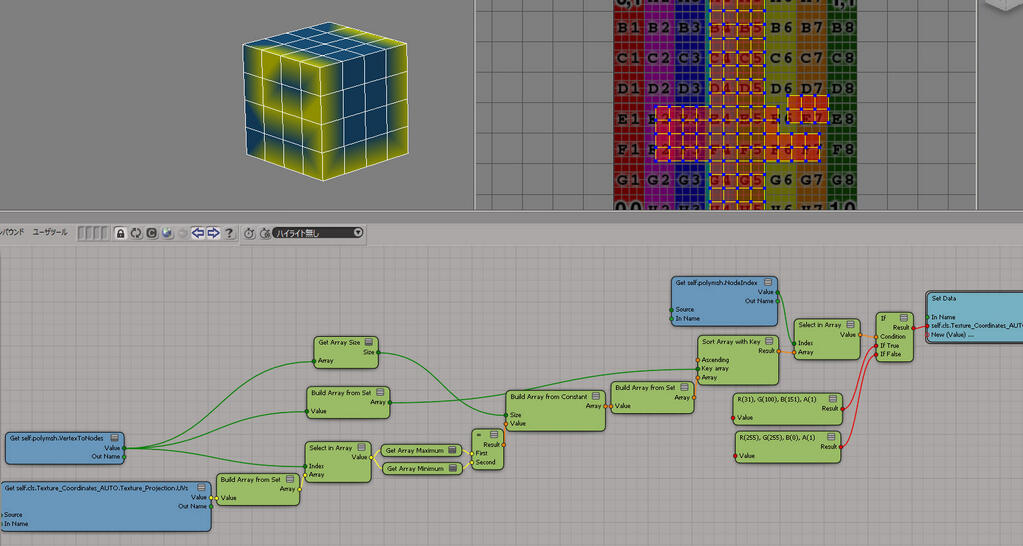

Color in the vertex UV coordinates
by Ymt3D
I’m not quite sure, but from the auto-translation I think this ICE tree isn’t working as expected:
“Color in the vertex UV coordinates of the nodes in the sample application point was different vertex colors to break the UV at ICE. · Tell someone smart way more ”
BF5WaJ_CAAA3hg1

Saturday Snippet: How many operators in Softimage?

Posted on by
Reply

Dictionary.Info gives you a list of all members in a particular family.

ops = Application.Dictionary.Info( '',"Operators").split(',')
print len(ops)
for op in ops:
	print op

For example, there are 592 operators in 2013 SP1 (and 585 in 2012 SP1).

# 592
#  RaiseNurbsCrvDegree
#  ExtrusionAlongAxis
#  4DVectorTo3DVectorNode
#  CreatePolygon
#  GetSetSumNode
#  deformbyspineop2
#  weighmapdeformbyspineop2
#  GetDistanceBetweenNode
#  MarkHardEdgeVertex
#  FCurveNode
#  BooleanSrfTopo
#  OldGenerateSampleSetNode
#  HipIcon
#  WeightPainter
#  DirectionToRotationNode
#  PropWeightMapBySpineOp
#  BaseRetargetOp
#  SkeletonUpVector
#  SkeletonPrefAxis
#  ReferenceToStringNode
#  BooleanSrfOp
#  RemoveNurbsCrvKnot
#  DeleteParticleOp
#  MergeDisjointVerticesNode
#  CenterManip
#  FillHole
#  SubtractNode
#  BlasterOp
#  NegateNode
#  CrvOffset
#  FourSided
#  DissolveComponent
#  Cap
#  3DVectorTo4DVectorNode
#  GetClosestPointsNode
#  FilterEdge
#  SubdivideEdge
#  MergePolygonNode
#  AnimationMarker
#  ExponentNode
#  Fixed Length Operator
#  AddEdge
#  SrfSwap
#  SrfDump
#  OffsetPolygons
#  ExtractPolygonsOp
#  SurfaceUVControl
#  Copy Shape Op
#  2DVectorNode
#  GetArraySizeNode
#  SortArrayNode
#  UpVectorDefiner
#  HairCutOp
#  DetachPolygonsOp
#  RotationToScalarNode
#  Birail2Contours
#  ToeGuide
#  GetSetMedianNode
#  4x4MatrixNode
#  Primitive Grid
#  Primitive Circle
#  Primitive Arc
#  Primitive Spiral
#  IntegerNode
#  NurbsCrvDeletePoint
#  HairScaleOp
#  HSVAToColorNode
#  ICETree
#  HLSAToColorNode
#  Primitive Cylinder
#  AreParallelNode
#  ManCharEyeOp
#  AddNode
#  VectorTo4x4MatrixNode
#  CrvDeform
#  ScalarNode
#  HairResampleOp
#  CompoundNode
#  SimulationStepNode
#  GetSetSizeNode
#  Primitive Square
#  Primitive Octahedron Operator
#  3x3MatrixNode
#  SRTToMatrixNode
#  MeshSubdivideWithCenter
#  PrimitivePreSimulationMarker
#  SrfOffset
#  SpeechBlendOp
#  TextToCurveListOp
#  SimpleIKRetargetOp
#  TextureOp
#  Quadrangulate
#  FrameStepNode
#  4x4MatrixToVectorNode
#  ChestBone
#  CopyGeo
#  PopFromArrayNode
#  SelectCaseNode
#  ColorNode
#  InvertPolygonNode
#  VertexColorChangeDatatype
#  MotionDerivator
#  FRBulgeNode
#  ExtractSubCrvOp
#  BipedRigSteppingAngle
#  ShapeNode
#  UndefinedLocationNode
#  GetClosestLocationNode
#  SplitPolygon
#  SetPositionNode
#  FingerBladeOp
#  CurrentTimeNode
#  SubdividePolygon
#  Surface curve adaptor
#  QStretch
#  3DVectorTo4x4MatrixNode
#  Primitive Disc
#  MatrixToSRTNode
#  RelaxUVW
#  UVToLocationNode
#  CrvPass
#  CrvExtract
#  SrfCrvShift
#  ReinterpretLocationToNewGeometryNode
#  CrvReparam
#  TangentOp_cpp
#  SubtractColorNode
#  SrfFit
#  PrimitiveMeshNode
#  MaximumNode
#  HairPopOp
#  ColorToGrayscaleNode
#  BooleanNode
#  MoveComponent
#  SCMFixer
#  SubdivideLocallyNode
#  MoveComponentProportional
#  BlobEncodeTestNode
#  PropVolume
#  GetDeterminantNode
#  CrvExtractSeg
#  GenerateSampleSetNode
#  MultiplyByScalarNode
#  CollapseEdgeNode
#  ScalarTo3DVectorNode
#  SplitEdge
#  HairMergeOp
#  SquaredLengthNode
#  TrigonometryNode
#  SparksOp
#  GetDataNode
#  SpringOp
#  Primitive Dodecahedron Operator
#  LengthNode
#  Loft
#  WeldPoints
#  QuaternionToAxisAndAngleNode
#  SortArrayWithKeyNode
#  TestBackcompNode
#  RemoveFromArrayNode
#  Loft
#  Extrusion
#  FourSided
#  PolyMeshPNet
#  CrvOffset
#  SrfOffset
#  SrfFillet
#  SrfIntersect
#  SrfMerge
#  FillHole
#  CrvFit
#  CrvExtract
#  Cap
#  CrvProject
#  CurveCreation
#  CrvNet
#  Birail
#  CrvFillet
#  CrvStitch
#  CrvMerge
#  CrvExtractSeg
#  ExtrusionTwoProfiles
#  SCMTopology
#  Revolution
#  BlendCrv
#  BlendSrf
#  CopyOp
#  GetArrayProductNode
#  FlexibleEnvelope
#  4x4MatrixTo3DVectorNode
#  SrfSubdivision
#  TangentOp2_cpp
#  ModuloNode
#  BooleanToIntegerNode
#  ClusterSimpleShapeCombinerOp
#  CollisionAvoidanceNode
#  HairGenOp
#  HairDynamicsOp
#  3x3MatrixToVectorNode
#  CrvSnap
#  TrimByProjection
#  SrfStitch
#  FRTugNode
#  VectorTo3x3MatrixNode
#  CurrentFrameNode
#  SCMFixer2
#  Lattice
#  RevolutionAlongAxis
#  FilterNode
#  Bulge
#  SetData
#  DelaySetDataNode
#  ImageCropOp
#  MultiplyVectorByMatrixNode
#  CrvPassByPoint
#  IsSingularNode
#  IntegerToBooleanNode
#  SetUserDataMapValueOp
#  SplitEdgeNode
#  BlobDecodeTestNode
#  CopyOp
#  LockEnvelopeWeights
#  CrvExtendTo
#  SrfClean
#  CrvFillet
#  CrvStitchToSrf
#  CrvStitch
#  CrvMerge
#  ExtendCrvToPoint
#  Surface To Surface Curve Adaptor
#  DicePolygons
#  AddVertexNode
#  CurveToCurvePointAdaptor
#  Modify Envelope Weight Prop Op
#  Skeleton Controller
#  BevelComponent
#  DeformBySpine
#  SimulateBulletRigidBodiesNode
#  RotationNode
#  First Bone Roll Division
#  Rotation Order
#  ConstrainCurveIsopoint
#  Revolution
#  SrfInverse
#  HairLockOp
#  CurveToCurveBoundaryAdaptor
#  LimitEnvelopeDeformersOp
#  HairSplitOp
#  GetArrayAverageNode
#  SetOneDataNode
#  InsertSrfKnot
#  RemoveSrfKnot
#  CrvProject
#  BlendNode
#  LogarithmNode
#  SrfFillet
#  EdgeDelete
#  ExtrudeComponent
#  AddEdgeNode
#  SimulateRigidBodiesNode
#  Spine Curve Operator
#  GetDataAtPreviousFrameNode
#  TriangulatePolygonNode
#  IntegerToScalarNode
#  Gator
#  SCMTopology
#  GetClosestPointToLineSegmentNode
#  First Bone Roll Division
#  MergeTopoArrayNode
#  ExtrudePolygonIslandNode
#  IsOnGeometryNode
#  ScalarToRotationNode
#  ExclusiveOrNode
#  DeleteComponent
#  ResizeArrayNode
#  DeletePointNode
#  GetAngleBetweenNode
#  SteppingAngle30Op
#  SymmetryMap
#  FlexibleEnvelopeAutoAssign
#  PropWeightMapBySpineOp
#  Snip
#  EditPolygon
#  GroupGeometryNode
#  CreateTopoNode
#  NurbsToMesh
#  Shear
#  GradientNode
#  HyperFlowOp
#  CameraTxt
#  PolyUVContourStretchingOnTopOp
#  BlendCrv
#  CustomOperator
#  ColorToHLSANode
#  QuaternionToRotationNode
#  FRLiftNode
#  SplineGenOp
#  PolygonReduction
#  ImageSourceOp
#  AddPolygonNode
#  IfNode
#  SimulationMarker
#  ScalarTo2DVectorNode
#  GetMinimumInSetNode
#  InsertInArrayNode
#  LinearInterpolateNode
#  ArcTan2Node
#  StringFilePathNode
#  SnapFace
#  HairPuffOp
#  PrimToNonLocalMatCls
#  GetElementIndicesNode
#  SetClusterPropSizeOp
#  RepeatNode
#  DisconnectComponentNode
#  ParTypeClsGenOp
#  FindInArrayNode
#  Fold
#  OldGetGeometrySampleNode
#  PushOnArrayNode
#  Birail
#  TextureOp
#  SurfacePQ
#  Cluster
#  MotionIntegrator
#  PassThroughNode
#  Multiply Rotation Operator
#  Spring
#  Collapse
#  QuaternionNode
#  BridgePolygon
#  HairUnlockOp
#  SymmetrizePolygon
#  FlipUVW
#  SetUVPropPinInfoOp
#  ImageFXOp
#  GetSetOrNode
#  TurbulenceNode
#  RGBAToColorNode
#  ClonePointNode
#  GetSetAndNode
#  RotationToEulerNode
#  SimMotionDerivOp
#  CompareNode
#  PointIndexToLocation
#  MergeTopoNode
#  MapCompOp2
#  DisconnectComponent
#  BlendTransformNode
#  Copy Shape Op
#  GetGeometrySampleNode
#  MatchUVW
#  NXDynamicsOp
#  FlowFieldRenderOp
#  Push
#  SoftBodyOp
#  RaycastNode
#  FlexibleEnvelopeAutoAssign
#  OldNurbsCrvDeletePoint
#  SlicePolygons
#  VertexColorPainter
#  PolyMeshPNet
#  BuildArrayFromConstantNode
#  AbsoluteValueNode
#  Cls Shape Combiner Op
#  ModelingMarker
#  CrvInverse
#  SrfShift
#  CrvShift
#  OffsetComponents
#  ExtractEdgeLoopOp
#  TurnEdgeOp
#  Fore Arm Roll Division
#  LogValuesNode
#  AddPointNode
#  IDToLocation
#  ExtrudeComponentAxis
#  SetEdgeCreaseValueOp
#  GetSetAverageNode
#  Primitive Tetrahedron Operator
#  SrfOpenClose
#  MixerOp
#  CloneTopoNode
#  Bend
#  Taper
#  ReserveArrayNode
#  Surface To Boundary Curve Adaptor
#  NormalizeNode
#  Fracture
#  Primitive Text
#  InvertNode
#  RotationToQuaternionNode
#  InitializeNode
#  SlicePolygonNode
#  PrimitivePostSimulationMarker
#  DeletePolygonNode
#  ClothOp
#  ShapeJitter
#  DotProductNode
#  SrfPass
#  MapAdaptOp
#  Spin
#  SplineDynamicsOp
#  Primitive Icosahedron Operator
#  Primitive Sphere
#  Extrusion
#  DivideByScalarNode
#  FilterPolygon
#  OLD Cache On File --REPLACEME
#  TestNode
#  InvertPolygon
#  Primitive Cone
#  Primitive Cube
#  QuaternionToScalarNode
#  CacheDataNode
#  PrimaryShapeMarker
#  MeshMerge
#  ICETreeComment
#  3DVectorNode
#  PaintWeight
#  WeightMap
#  SrfMerge
#  AddPointToMiddleOfCurve
#  GetArrayMaximumNode
#  Connector_Head
#  DieNode
#  DogLeg
#  CombineLogicNode
#  4DVectorNode
#  CrvClean
#  CrvOpenClose
#  PostSimulationMarker
#  Smooth
#  WeldEdges
#  CrossProductNode
#  Spine PointAt Operator
#  SrfIntersect
#  ShrinkWrap
#  QuadrupedGuideOp
#  WMCnxOp
#  DeformHairAdaptor
#  Revolution
#  Extrusion
#  ProjectVectorNode
#  SrfDeform
#  TransposeNode
#  Connector_L
#  InsertNurbsCrvKnot
#  BlowUpOp
#  ClusterCenter
#  NotNode
#  CurveKnotAlignTangent
#  CurveListToMesh
#  AddColorNode
#  ScalarTo4DVectorNode
#  CrvFit
#  MapCompOp
#  SrfCrvInverse
#  Softimage
#  FacialSoftTissueOp
#  GetArraySubIndicesNode
#  EvolveOp
#  HairClumpOp
#  HairAttenuateOp
#  BlendSrf
#  ScriptedOpHost
#  AddParticleOp
#  QuaternionToEulerNode
#  Heal
#  MinimumNode
#  MeshSubdivide
#  SrfReparam
#  FRSkullUVsToPtLocsNode
#  CustomNode
#  Proportional
#  Connector_T
#  PointInVolumeNode
#  ArePerpendicularNode
#  RotateVectorNode
#  BBoxCns
#  ColorToRGBANode
#  PolyUVContourStretchingOp
#  SpinEdge
#  CompoundNode
#  Connector_Box
#  LocalTextureOp
#  GetClosestPointToLineNode
#  PropertyXferOp
#  3DVectorToScalarNode
#  StringFilePathSequenceNode
#  ScalarToQuaternionNode
#  HairCombOp
#  PrimitiveSimulationMarker
#  BasicCollideNode
#  ExecuteNode
#  CurveCreation
#  SecondaryShapeMarker
#  CrvNet
#  SetInArrayNode
#  MultiplyColorByScalarNode
#  PropWeightMapBySpineOp
#  ClsKeyWeightMapOp
#  EulerToQuaternionNode
#  QuatSpineOp
#  WhileNode
#  Weight Maps Mixer Op
#  GetActionSourceAtFrameNode
#  Noise
#  Wave
#  BallisticSim
#  VertexColor
#  Cage Deform Auto Assign
#  CycleUVW
#  Proportional
#  GetArraySumNode
#  InstanceShapeNode
#  DynamicsOp
#  EdgeAdd
#  FlowFieldOp
#  BuildArrayNode
#  PolyUVPackingOp
#  ExtrudeComponentNormal
#  SelectInArrayNode
#  RescaleNode
#  CacheOnFileNode
#  RotationToAxisAndAngleNode
#  DeleteVertexNode
#  ColorToHSVANode
#  AddToClsOp
#  Twist
#  IslandHealUVWOp
#  SimulateParticlesNode
#  MultiplyNode
#  AxisAndAngleToQuaternionNode
#  HealUVW
#  2DVectorToScalarNode
#  FirstValidNode
#  SwitchContextNode
#  TangentOp2_cpp
#  StringNode
#  GetArrayMinimumNode
#  ClusterToObj
#  RoundNode
#  GetMaximumInSetNode
#  Primitive Torus
#  HairRotateOp
#  FilterPoints
#  FRSkinNode
#  RandomValueNode
#  CrvDump
#  DeleteTrim
#  PolygonAdd
#  ClampNode
#  Randomize
#  CageDeform
#  MeshLocalSubdivision
#
#  MeshSrfDeletePoint
#  TopoTransformNode
#  CopyUVW
#  SquareRootNode
#  HairShatterOp
#  SetNurbsCrvKnotMultiplicity
#  HairRecombOp
#  AxisAndAngleToRotationNode
#  EulerToRotationNode
#  BuildArrayFromSetNode
#  ColorToBrightnessNode
#  BlendColorNode
#  4DVectorToScalarNode
#  QuaternionInterpolateNode
#  syCollidePla
#  syZipper
#  POXSI
#  syWind
#  syProperties
#  syCollide
#  syMimic
#  syCache
#  syVolume
#  syTurbulence
#  sySpring
#  syPin
#  sySelfCollide
#  syPropertiesFlesh
#  syGravity
#  syDamp
#  syCloth
#  syPropertiesSkin
#  syNail
#  syAir
#  syCollideSph
