Tips for troubleshooting satellite rendering

So, you’ve set up your .ray3hosts file, got the raysat services running, and ping and telnet show that there’s no connection problems. But satellite still doesn’t seem to be working. What to do?

  • Check that the raysat service running on the master too. (it has to be running on both the master and the slaves)
  • Use the mental ray diagnostics to check whether the satellites are being used. In the mental ray renderer settings, click the Diagnostics tab, and select the Info and Progress checkboxes.
    If satellite is working, you should see something like this:

    // INFO : JOB  0.n  progr:    89.8%    rendered on MTL-SATELLITE:7020.6
    // INFO : JOB  0.13 progr:    90.9%    rendered on MTL-MASTER.13
    // INFO : JOB  0.6  progr:    91.9%    rendered on MTL-MASTER.6
    // INFO : JOB  0.n  progr:    92.9%    rendered on MTL-SATELLITE:7020.7
    // INFO : JOB  0.12 progr:    93.9%    rendered on MTL-MASTER.12
    // INFO : JOB  0.n  progr:    94.9%    rendered on MTL-SATELLITE:7020.2
    // INFO : JOB  0.n  progr:    95.9%    rendered on MTL-SATELLITE:7020.4
    // INFO : JOB  0.10 progr:    96.9%    rendered on MTL-MASTER.10
    // INFO : JOB  0.n  progr:    97.9%    rendered on MTL-SATELLITE:7020.0
    // INFO : JOB  0.n  progr:    98.9%    rendered on MTL-SATELLITE:7020.5
  • Use Process Monitor on the satellite machine to confirm that the master is actually connecting to the satellite.
  • On the master machine, in Softimage, open the script editor (ALT+4) and run this JScript:

    LogMessage( XSIUtils.Environment.Item("MI_RAY_HOSTSFILE") );

    This will log the .ray3hosts file that Softimage is using.
    Is this the same .ray3hosts file that you created?

    On Windows XP, UserTools creates the .ray3hosts file in the “wrong” location
    (UserTools puts it one place, but Softimage reads it from another place).

I got an iPad for work..what am I going to do with it?

Product Support (PS) Montreal got their iPad last week; every support team is getting one. For the moment we don’t really need it for anything. Sure, there are some consumer apps like Sketchbook Pro, but we (the Maya/Max/Soft team) don’t support those apps. Maybe there’ll eventually be some kind of mobile apps for M&E customers. So for now I loaded it up with some AD apps like 123 Sculpt, Tinkerbox, and SketchBook that we can play with.

Related article: How one app introduced Autodesk to consumers
Read about the story of SketchBook Mobile from the perspective of Learn how the success of the app led to the creation of the consumer products group and the development of additional mobile applications.

The case of the missing registry values

Problem: On 64-bit Windows 7, 32-bit Softimage 2012 crashes instantly & silently as soon as the UI appears. But xsibatch also crashes instantly, so this is unlikely to be a graphic card problem.

Solution: Import missing HKCR\Wow6432Node\CLSID\{B54F3741-5B07-11cf-A4B0-00AA004A55E8} values from another computer.

Case Notes:

This one had me stumped for awhile.

To repro a customer problem, I installed 32-bit Softimage 2012 SP1 on my 64-bit Windows 7 computer, but 32-bit Softimage won’t run. It just crashed silently after showing the UI, and xsibatch did nothing except print its version number banner (so I knew it wasn’t a graphics driver issue).

I checked things out with Process Monitor and I saw that Softimage was crashing shortly after loading jscript.dll. So I did a runonce, and I re-registered jscript.dll and vbscript.dll, but to no avail. I did, however, get a chance to debug after the next crash, and that showed that XSI.exe was crashing in the scripthost after loading jscript.dll.

I eyeballed the JScript registry entries, but they looked ok to me.

Finally I installed a debug version, and then I got a line number for an assert. And that showed me that Softimage was failing to get the VBscript ProgID. So I checked out the VBScript registry entries under


and sure enough, the values were all missing. So all I had to do was get the missing values from another computer, import them into my registry, and case solved!

Friday Flashback #33

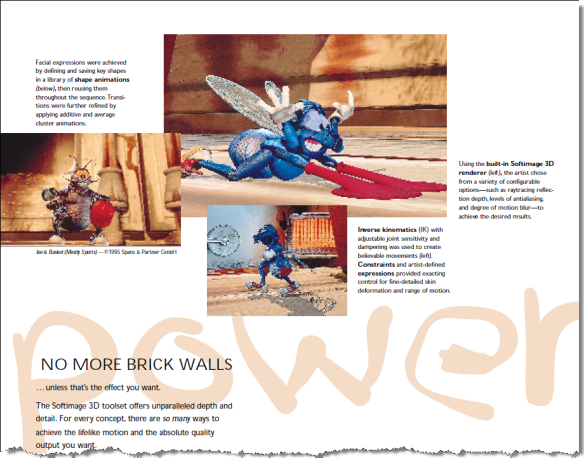

In looking through some old PDFs, I found the PDF for a SOFTIMAGE|3D brochure from 1996, which included this page with some [rather low quality] images from the Joe Fly spot from Spans & Partner.
