Saturday snippet: Using the connection stack to find all expressions driven by a given parameter

Posted on by
Reply

#
# Softimage 2013 SP1 Python snippet
#
from sipyutils import si			# win32com.client.Dispatch('XSI.Application')
from sipyutils import siut		# win32com.client.Dispatch('XSI.Utils')
from sipyutils import siui		# win32com.client.Dispatch('XSI.UIToolkit')
from sipyutils import simath	# win32com.client.Dispatch('XSI.Math')
from sipyutils import log		# LogMessage
from sipyutils import disp		# win32com.client.Dispatch
from sipyutils import C			# win32com.client.constants

si=si()
siut=siut()
from xml.etree import ElementTree as ET

def getExpressionsDrivenByLocalParameter( obj, param="posx" ):
	stack = siut.DataRepository.GetConnectionStackInfo( obj.Parameters(param) )
#	print stack

	expressions = XSIFactory.CreateObject("XSI.Collection")
	expressions.Unique = True
	xmlRoot = ET.fromstring(stack)
	for xmlCnx in xmlRoot.findall('connection'):
		if xmlCnx.find('type').text == 'out' and xmlCnx.find('localparameter') is not None and xmlCnx.find('localparameter').text == param:
			item = xmlCnx.find('object').text
			if item.endswith('.Expression'):
				expressions.AddItems(item)

	return expressions


# Create an expression where the Scene Material diffuse red drives the diffuse red of a Lambert shader
Application.SetExpr("Sources.Materials.DefaultLib.Lambert.Lambert.diffuse.red", "Sources.Materials.DefaultLib.Scene_Material.Phong.diffuse.red")

x = getExpressionsDrivenByLocalParameter( si.Dictionary.GetObject("Sources.Materials.DefaultLib.Scene_Material.Phong.diffuse"), param="red" )
log( x )
# INFO : Sources.Materials.DefaultLib.Lambert.Lambert.diffuse.red.Expression

Reference and credits:

Friday Flashback #89

Posted on by
4

Courtesy of Ed Harriss, here’s some pics of the old SOFTIMAGE Creative Environment boxes. I haven’t seen one of these boxes since we moved out of the Softimage offices on St Laurent; if you went down to the doc team area, you’d see these Creative Environment docs on the bookshelves.



The Softimage product was known as “Creative Environment” until 1995, when it became SOFTIMAGE|3D. Here’s a version history of the SOFTIMAGE Creative Environment (CE) and SOFTIMAGE|3D (SI3D) products.

1988 CE v0.8
1989 CE v1.5
Sep-90 CE v2.1
1991 CE v2.5
CE v2.51
CE v2.52
CE v2.65
CE v2.66
1995 SI3D v3.0 (NT)
1996 SI3D v3.5
SI3D v3.51
1997 SI3D v3.7
SI3D v3.7 SP1
Jul-98 SI3D v3.8
Jan-99 SI3D v3.8 SP1
Aug-99 SI3D v3.8 SP2
Mar-00 SI3D v3.9
May-00 SI3D v3.9.1
Dec-00 SI3D v3.9.2
Mar-01 SI3D v3.9.2.1
May-01 SI3D v3.9.2.2
Feb-02 SI3D v4.0

Finding phantom passes created with Duplicate

Posted on by
1

As I mentioned last year around this time, it is possible to end up with passes that don’t show up in the explorer. This happens when you Duplicate a pass, and the Hierarchy option “preferences.duplicate.hierarchy” is set to None. So your new pass has no parent, and is disconnected from the rest of the scene (aka floating).

These phantom passes have names like “#Pass”, and you can select them if you know how.

Here’s how, in Python, with the 2013 SP1 Python shortcuts.

from sipyutils import si			# win32com.client.Dispatch('XSI.Application')
from sipyutils import siut		# win32com.client.Dispatch('XSI.Utils')
from sipyutils import siui		# win32com.client.Dispatch('XSI.UIToolkit')
from sipyutils import simath	# win32com.client.Dispatch('XSI.Math')
from sipyutils import log		# LogMessage
from sipyutils import disp		# win32com.client.Dispatch
from sipyutils import C			# win32com.client.constants

si=si()

sClassID = siut().DataRepository.GetIdentifier( si.ActiveProject.ActiveScene.Passes(0), C.siObjectCLSID )
passes = si.FindObjects( None, sClassID ).Filter( "", None, "#Pass*" )
print passes.Count
print passes.GetAsText()

#
# The following don't work! At least not all the time 😦
#
si.DeleteObj( passes )

#si.ParentObj( "FloatingPasses.Passes", "#Pass<61>" )
#si.CopyPaste( passes(0), "", si.Dictionary.GetObject("FloatingPasses.Passes") )

si.SelectObj( passes )

When I was testing this, sometimes I was able to delete those phantom passes, and sometimes I wasn’t.
Sometimes those passes disappeared when I saved the scene, did New Scene, and then reloaded the scene. Sometimes they didn’t (disappear that is).

When DeleteObj didn’t work, I’d use the explorer to view the phantom passes (since I called SelectObj on them, I could just show selected in the explorer).

Rescuing corrupted scenes

Posted on by
Reply

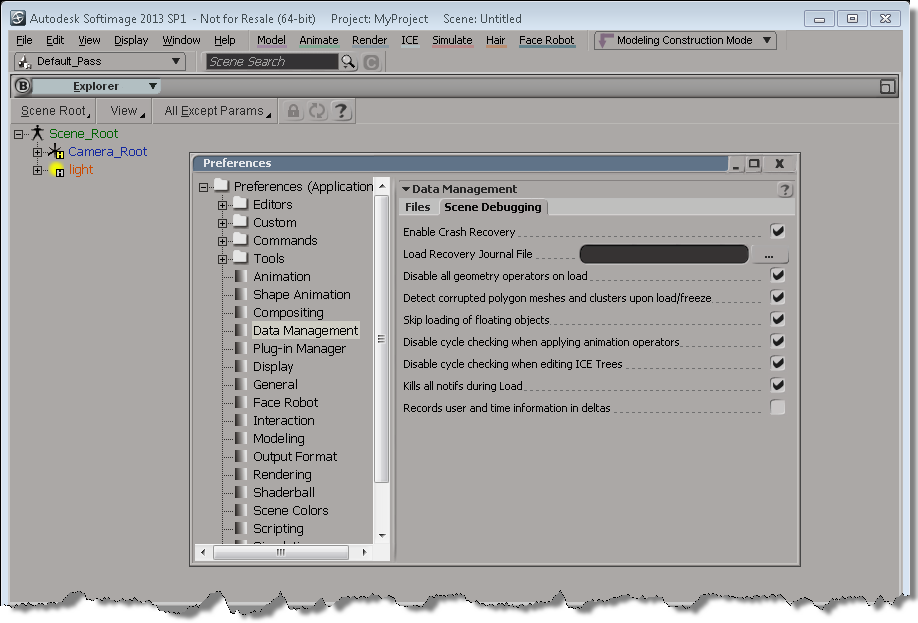

Here’s a few things you can try when you need to rescue a scene (or model) that crashes Softimage when you try to load it.

Setting up Softimage before you merge in a corrupted scene:

Context matters: Add Point is always per-object

Posted on by
Reply

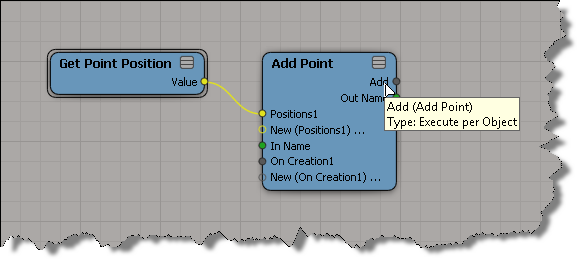

Unlike Clone Point, the output context of Add Point is always per-object, no matter what you plug into its input ports. So, for example, you cannot plug Add Point into an Execute on Emit port (which is a per-point port). Making Add Point per-object makes sense to me, because typically you want to add N points to a point cloud, not add N points for every point that is already in the target point cloud (that already sounds confusing).

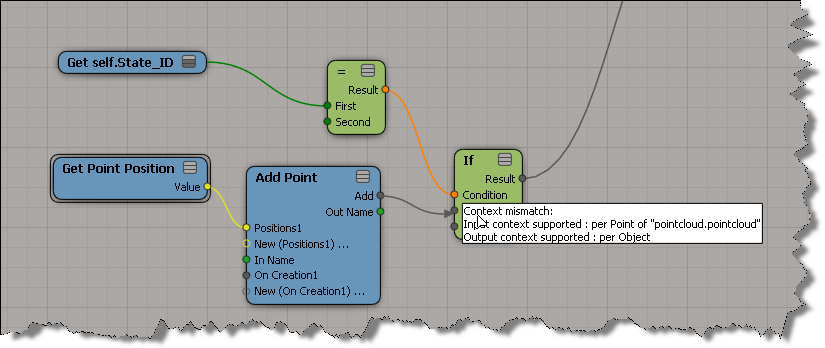

One consequence of Add Point being per object is that you cannot use an If node to copy over some subset of points to the target point cloud. For example, if your If node is already plugged into something that makes it per-point then you’ll get a context error:

If your If node wasn’t plugged in yet, you’d get some red nodes like this:

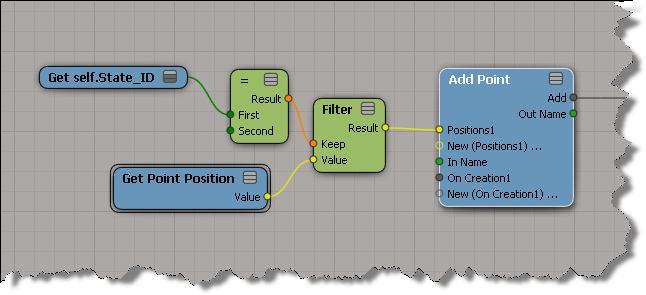

The solution is to use a Filter on the other side [upstream] of the Add Point:

hat tips to Gray and Julian

Saturday snippet: Getting at the Texture Projection Definition

Posted on by
Reply

Here’s a simple Python snippet that shows how to traverse the object hierarchy to get at a Texture Projection Definition. Note that I’m not looping over any of the collections, I just get the first element with “(0)” on lines 25, 28, and 31.

#
# 2013 SP1 shortcuts
#
#from sipyutils import si			# win32com.client.Dispatch('XSI.Application')
#from sipyutils import siut		# win32com.client.Dispatch('XSI.Utils')
#from sipyutils import siui		# win32com.client.Dispatch('XSI.UIToolkit')
#from sipyutils import simath	# win32com.client.Dispatch('XSI.Math')
#from sipyutils import log		# LogMessage
#from sipyutils import disp		# win32com.client.Dispatch
#from sipyutils import C			# win32com.client.constants
#si=si()


si=Application
dict=si.Dictionary

def dispFix( badDispatch ):
	import win32com.client.dynamic
	# Re-Wraps a bad dispatch into a working one:
	return win32com.client.dynamic.Dispatch(badDispatch)

o = dict.GetObject( "grid1" )

# Get the texture coordinates (aka the Sample cluster)
c = o.ActivePrimitive.Geometry.Clusters.Filter( "sample" )(0)

# Get  the Texture Projection
uv = c.Properties.Filter( "uvspace" )(0)

# Get  the Texture Projection Definition
uvdef = uv.NestedObjects.Filter( "uvprojdef" )(0)
print si.ClassName(uvdef)

# Get a texture projection parameter (in this example, the U translation)
x = dispFix(uvdef)
projtrsu = x.Parameters("projtrsu")

print si.ClassName( projtrsu )
print projtrsu.FullName

Here’s what the hierarchy looks like in the SDK explorer:
